Overview
Benefits

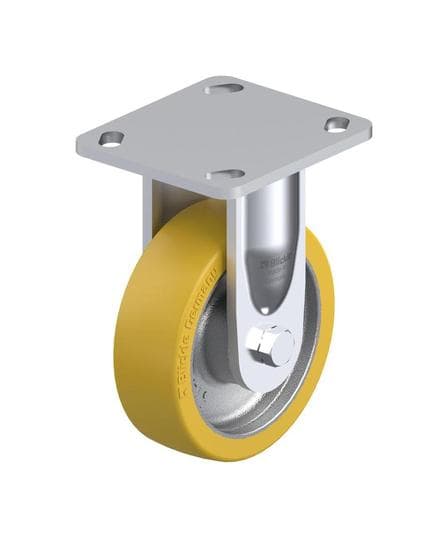

- High Load Capacity: The BHS-GTH 125K-14 caster can handle significant loads, making it ideal for heavy-duty applications.
-
Durable Construction: The tread is made of high-quality polyurethane-elastomer Blickle Extrathane®, cast onto a rugged gray cast iron wheel center, providing excellent resistance to cut and tear propagation.
- Floor Protection: The polyurethane caster wheels offer superior floor protection, preventing damage to surfaces.
- Maintenance-Free: Equipped with precision ball bearings, this caster ensures smooth and maintenance-free operation.
| SKU | BHS-GTH 125K-1 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 5 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-9/16 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 6-1/2 Inches | Bearing Type | Ball Bearing |
| Core Material | Cast Iron | Weight Capacity | 1215 lbs at 2.5 mph |
| Caster Type | Rigid | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Industrial Settings: Suitable for use in factories, warehouses, and other industrial environments where heavy loads need to be moved efficiently.
- Heavy Machinery: Ideal for mounting on heavy machinery and equipment due to its high load capacity and durable construction.
- Material Handling: Perfect for carts and trolleys used in material handling applications, providing reliable and smooth mobility.
