Overview

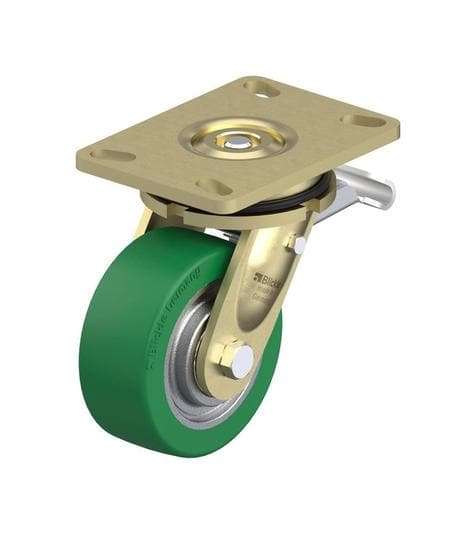

The LS-GST 127K-16-ST is a heavy-duty industrial swivel caster designed for demanding applications. This caster features a high-quality polyurethane-elastomer tread, known as Blickle Softhane®, which is cast onto a rugged gray cast iron wheel center. The extra-thick tread with a hardness of 75 Shore A ensures excellent floor surface preservation and smooth rolling performance, making it ideal for various industrial environments.
Benefits
- Brake System: Equipped with the 'stop-top' brake system, this locking caster provides enhanced safety and stability.
- Durability: The polyurethane caster wheels are designed to withstand heavy loads and harsh conditions, ensuring long-lasting performance.
- Floor Protection: The 75 Shore A hardness rating provides excellent floor protection, preventing damage to surfaces.
- Smooth Rolling: The extra-thick tread and precision ball bearings ensure smooth and quiet operation, reducing noise and vibration.
- Non-Marking: The polyurethane material is non-marking and non-staining, keeping floors clean and free from marks.
| SKU | LS-GST 127K-16-ST | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 5 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Polyurethane Elastomer |
| Hardness Rating | 75 Shore A | Bearing Type | Ball Bearing |
| Core Material | Iron | Weight Capacity | 990 at 2.5 mph |
| Application | Heavy Duty | Overall Height | 6 11/16 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
- Heavy Duty: Suitable for heavy-duty applications where high load capacity and durability are required.
- Industrial Environments: Ideal for use in warehouses, manufacturing plants, and other industrial settings.
- Floor Protection: Perfect for environments where floor preservation is crucial, such as hospitals and clean rooms.
