| SKU | 71.63.51.NYB | 2D Drawing | 2D Drawing |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Weight Capacity | 5400 lbs |
| Wheel Width | 3 Inches | Tread Style | Flat Tread |
| Overall Height | 7-1/2 Inches | Wheel Material | Nylon |
| Core Material | Nylon | Bearing Type | Ball Bearing |
| Caster Type | Rigid | Mounting Type | Top Plate |
| Top Plate | 4-1/2 Inches x 6-1/2 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-7/16 Inches - 3-3/8 Inches x 4-15/16 Inches - 5-1/4 Inches | Fork Finish | Zinc Plated |
Overview

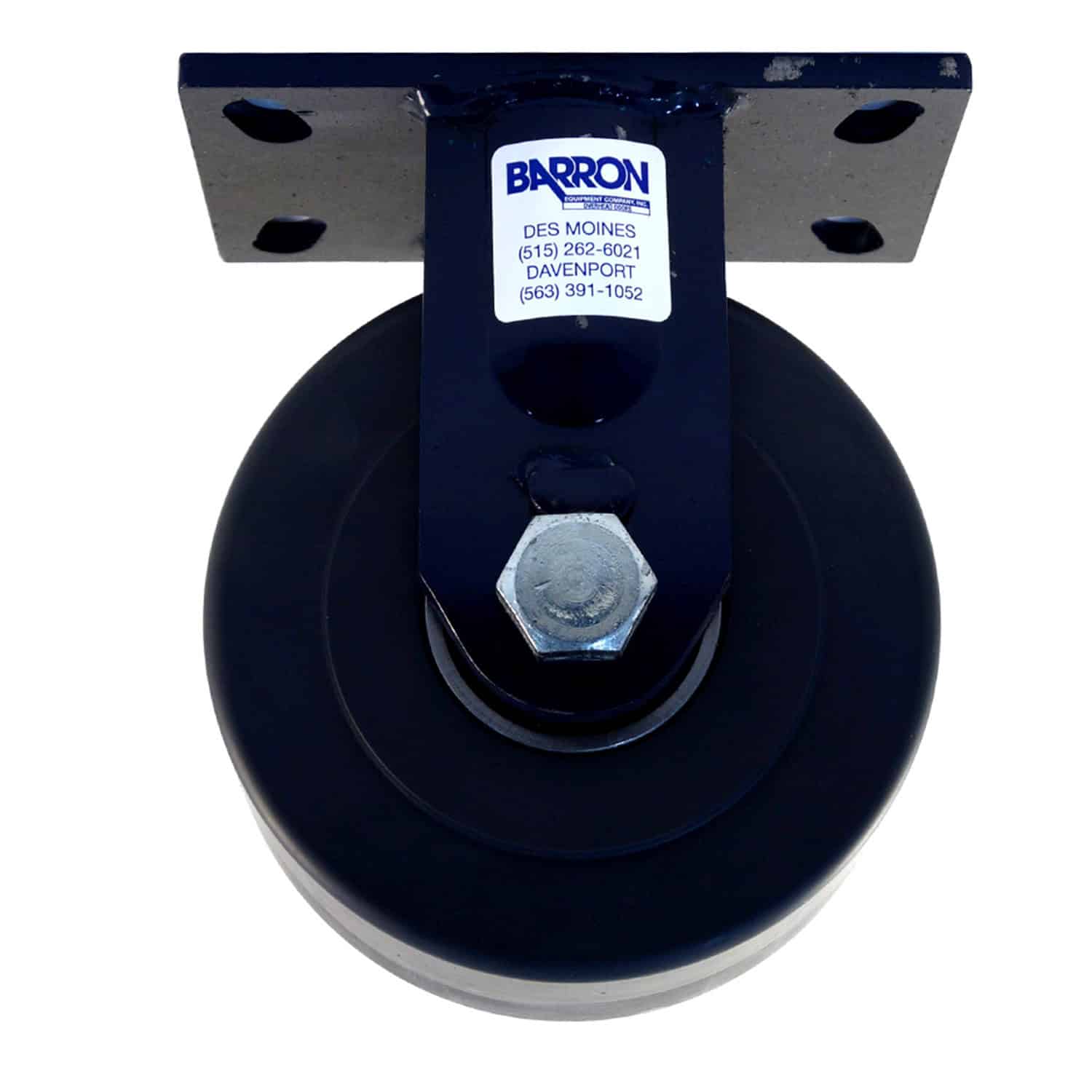

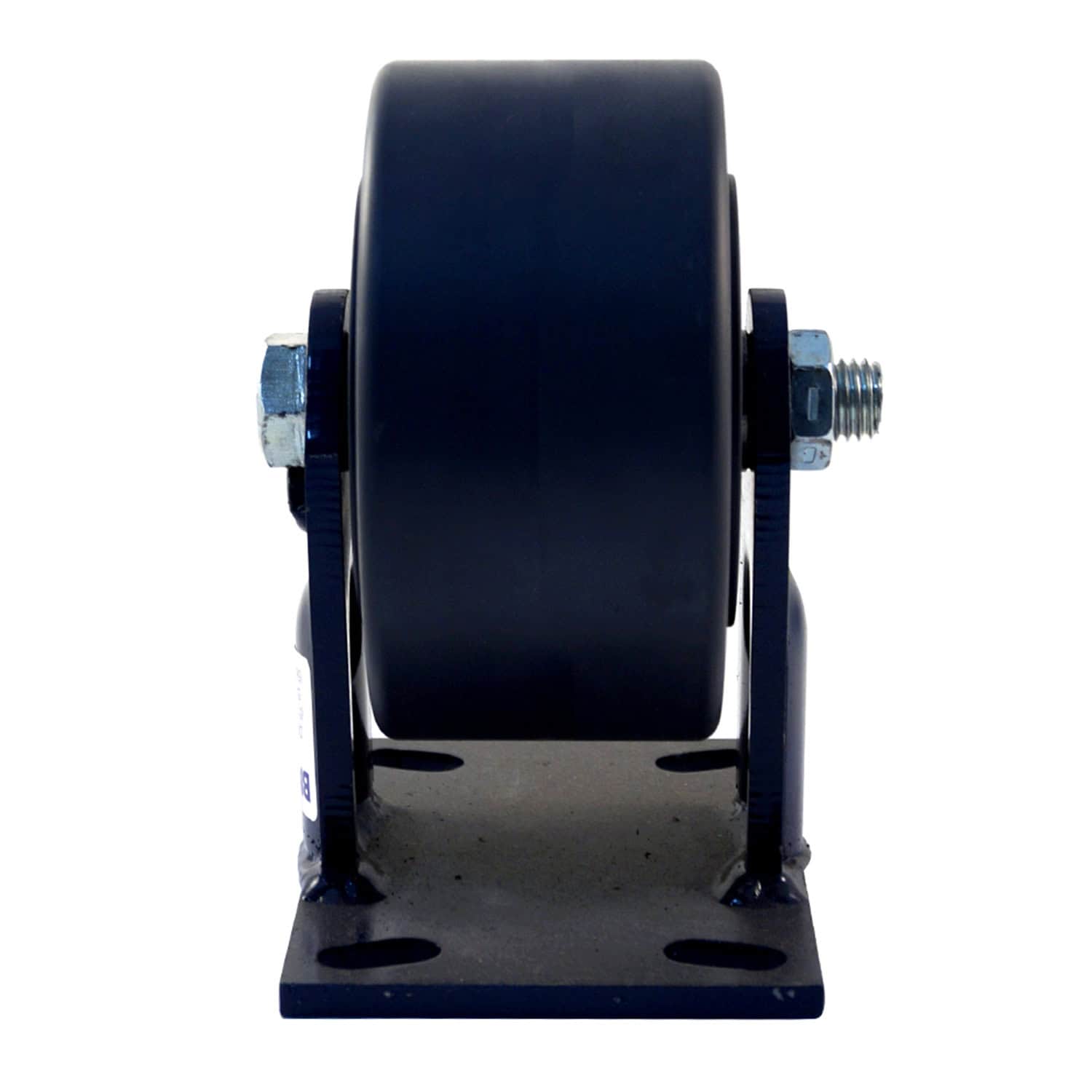

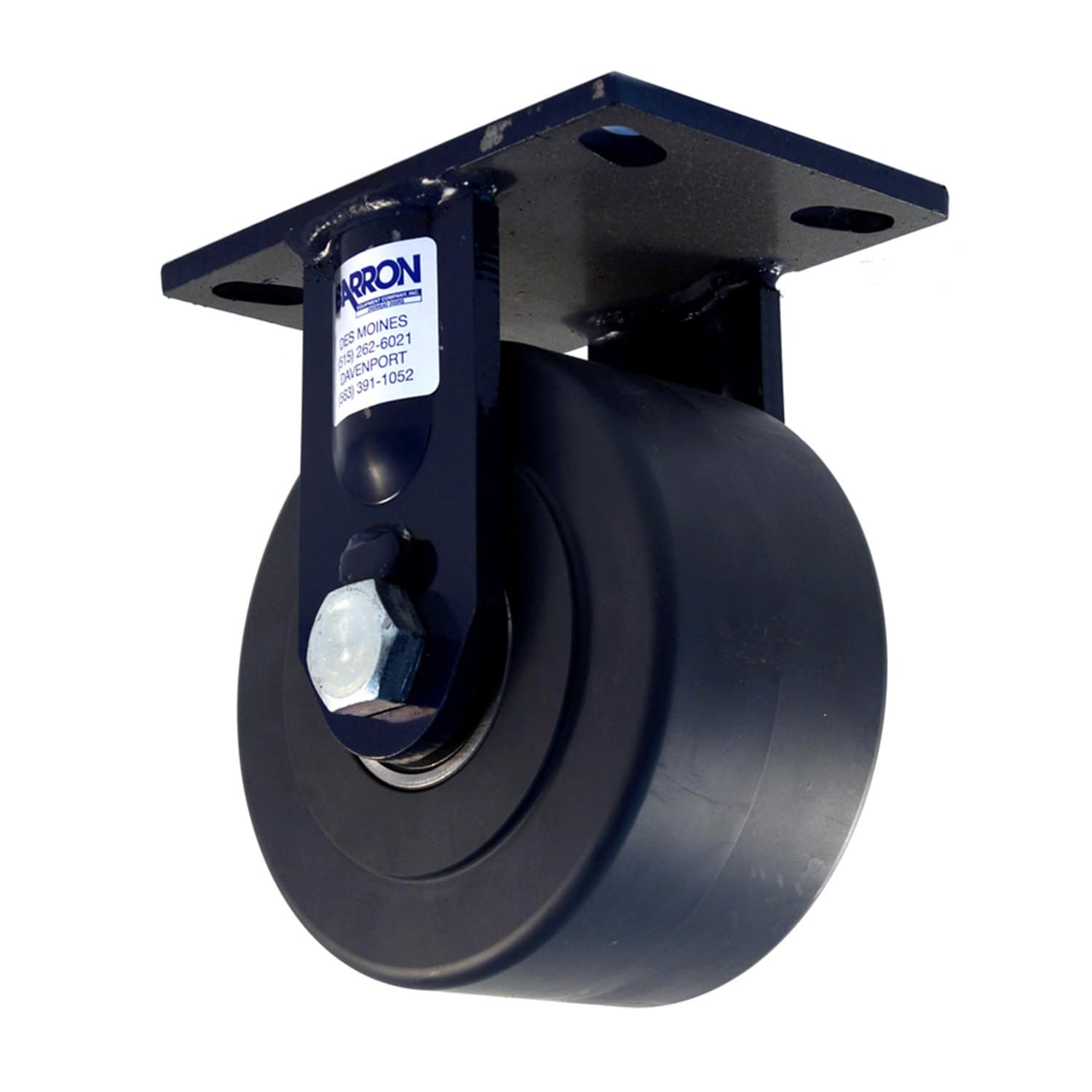

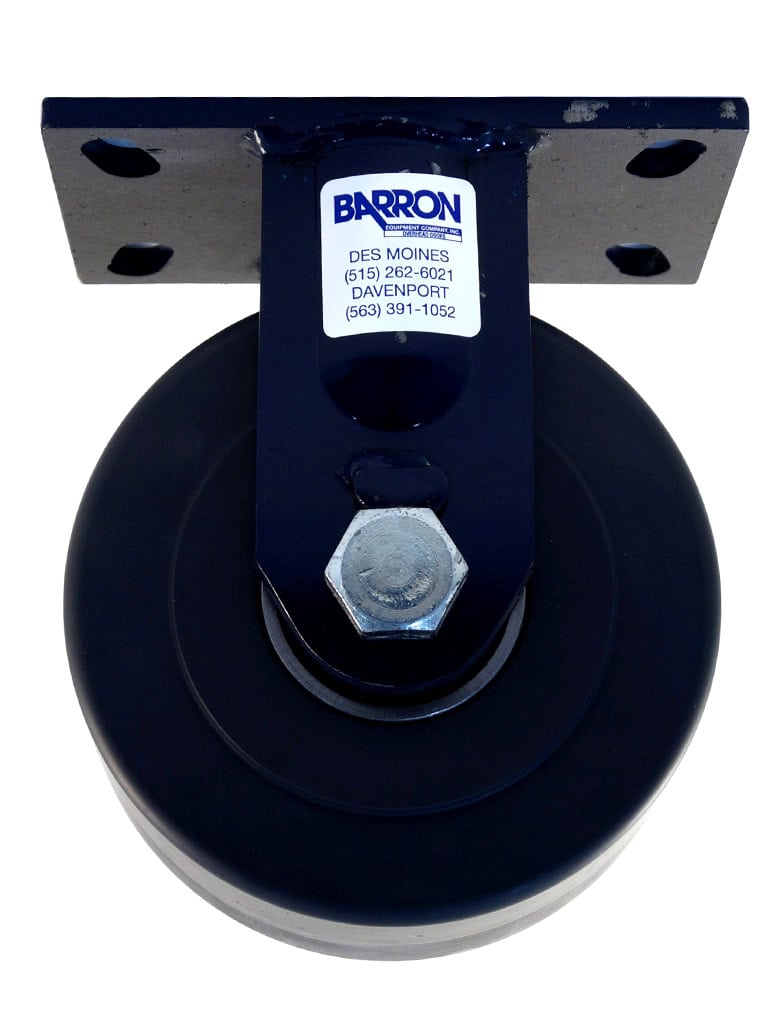

This kingpinless rigid caster has a nylon caster wheel with a diameter of 6 inches and is ideal for heavy duty industrial applications. This fixed caster is cost effective and provides better overall ergonomics than standard industrial casters.
Benefits
The main benefit of the kingpinless series casters is that they eliminate the use of the kingpin which allows for longer use, better ergonomics and more efficiency. In addition to benefits of the overall kingpinless caster category, nylon wheels have their own benefits such as being resistant to moisture and chemicals and they are well suited for corrosive environments or applications where sanitary conditions are important.
Applications
Applications for nylon wheel kingpinless rigid casters include industrial manufacturing and warehousing. You'll find these non-swivel casters with nylon wheels on waste bins, platform trucks, job boxes and in bakeries, woodworking facilities and in the aerospace, automotive and food processing industries. Click here to learn more about our nylon wheels.

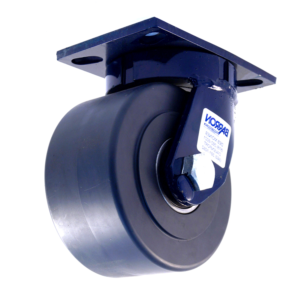

These rigid casters are typically used in tandem with our kingpinless swivel casters (casters that begin with "70"). Most carts use 2 swivel and 2 rigid casters for optimal maneuverability and stability.
If your business requires a heavy duty caster solution for challenging environments, you will want to review our Heavy Duty Kingpinless Casters category.
Selection Assistance
Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!
