Overview

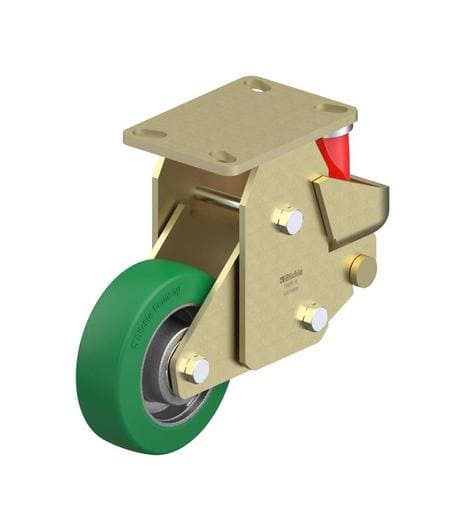

The BSFE-GST 150K-16 is a heavy duty rigid caster designed to provide top quality mobility solutions for various industrial applications. This fixed caster features a robust construction with a polyurethane tread, ensuring reliable performance and floor protection. With a dynamic load capacity of 1,255 lbs at 2.5 mph, this caster is ideal for demanding environments where durability and strength are paramount.
Benefits
- High Load Capacity: The BSFE-GST 150K-16 caster can handle substantial weights, with a dynamic load capacity of 1,255 lbs at 2.5 mph, making it suitable for heavy duty applications.
- Durable Construction: Made from high quality materials, this heavy duty caster ensures long-lasting performance and reliability.
- Polyurethane Tread: The polyurethane caster wheels offer excellent floor protection, reducing the risk of damage to surfaces while providing a smooth and quiet operation.
- Maintenance-Free: Equipped with precision ball bearings, this caster offers smooth and maintenance-free operation, reducing downtime and maintenance costs.
| SKU | BSFE-GST 150K-16 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 9-7/16 Inches | Bearing Type | Ball Bearing |
| Core Material | Cast Iron | Weight Capacity | 1255 lbs at 2.5 mph |
| Caster Type | Rigid | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches - 3-3/8 Inches x 5-1/4 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The BSFE-GST 150K-16 heavy duty rigid caster is ideal for a wide range of industrial applications, including:
- Material handling equipment
- Warehouse carts and trolleys
- Heavy machinery and equipment
- Industrial carts and dollies
