Overview
Benefits
- Heavy Duty Design:Â The caster is built with a pressed steel swivel rig and a steel spring, making it suitable for heavy duty applications.
- Floor Protection:Â Equipped with Blickle EasyRoll elastic solid rubber tires, this caster provides excellent floor preservation and low-noise operation.
- High Load Capacity: The caster can handle substantial loads, with a dynamic load capacity of 880 lbs, making it ideal for industrial use.
- Shock and Impact Resistance:Â The caster is particularly resistant to shocks and impacts due to four specially-shaped, hardened bearing seats.
- Top Quality Mobility Solutions:Â The combination of high-quality materials and precision engineering ensures smooth and reliable movement.

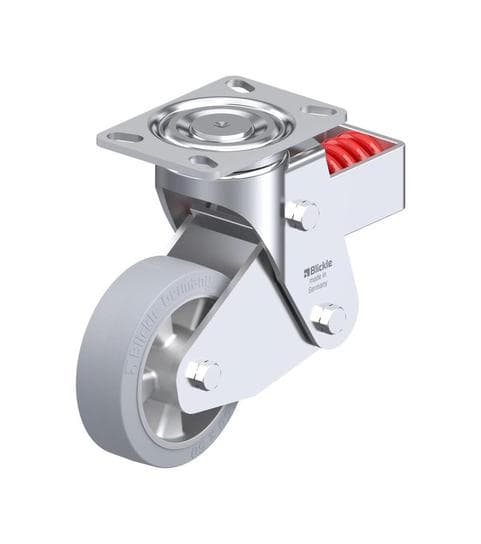

| SKU | LHF-ALEV 150K-16-SG | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 175 |
| Wheel Width | 2 Inches | Wheel Material | Blickle EasyRoll Rubber |
| Overall Height | 9-7/16 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 880 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 65 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Premium Rubber Wheels
Premium rubber wheels are engineered for smooth, quiet, and floor-friendly transport across a wide range of industrial and commercial settings. These wheels offer superior operational comfort, excellent shock absorption, and reduced noise levels—making them ideal for sensitive environments and heavy-duty use.
Barron Equipment offers a robust selection of premium rubber wheel solutions, including multiple series designed for specific applications. Options include:
- Blickle EasyRoll: Elastic solid rubber tires vulcanized onto impact-resistant nylon wheel centers (POEV, ALEV, & SE series)
- Blickle SoftMotion: Soft rubber tires with aluminum or nylon cores for enhanced comfort and maneuverability
(ALES series) - Thermoplastic: High quality thermoplastic with an impact-resistant polypropylene core for low rolling and swivel resistance
(TPA series)
These wheels are available in various configurations—swivel casters, rigid casters, and twin-wheel formats—and support speeds up to 10 mph. They are also resistant to many aggressive substances and offer excellent floor preservation.
Check out the video below for more information.
Applications
- Industrial Environments:Â Perfect for use in factories, warehouses, and other industrial settings where heavy loads need to be moved efficiently.
- Heavy Equipment:Â Suitable for mounting on heavy machinery and equipment that require durable and reliable mobility.
- Floor Protection:Â Ideal for applications where floor preservation is crucial, thanks to its non-marking rubber tires.
