Overview
Benefits

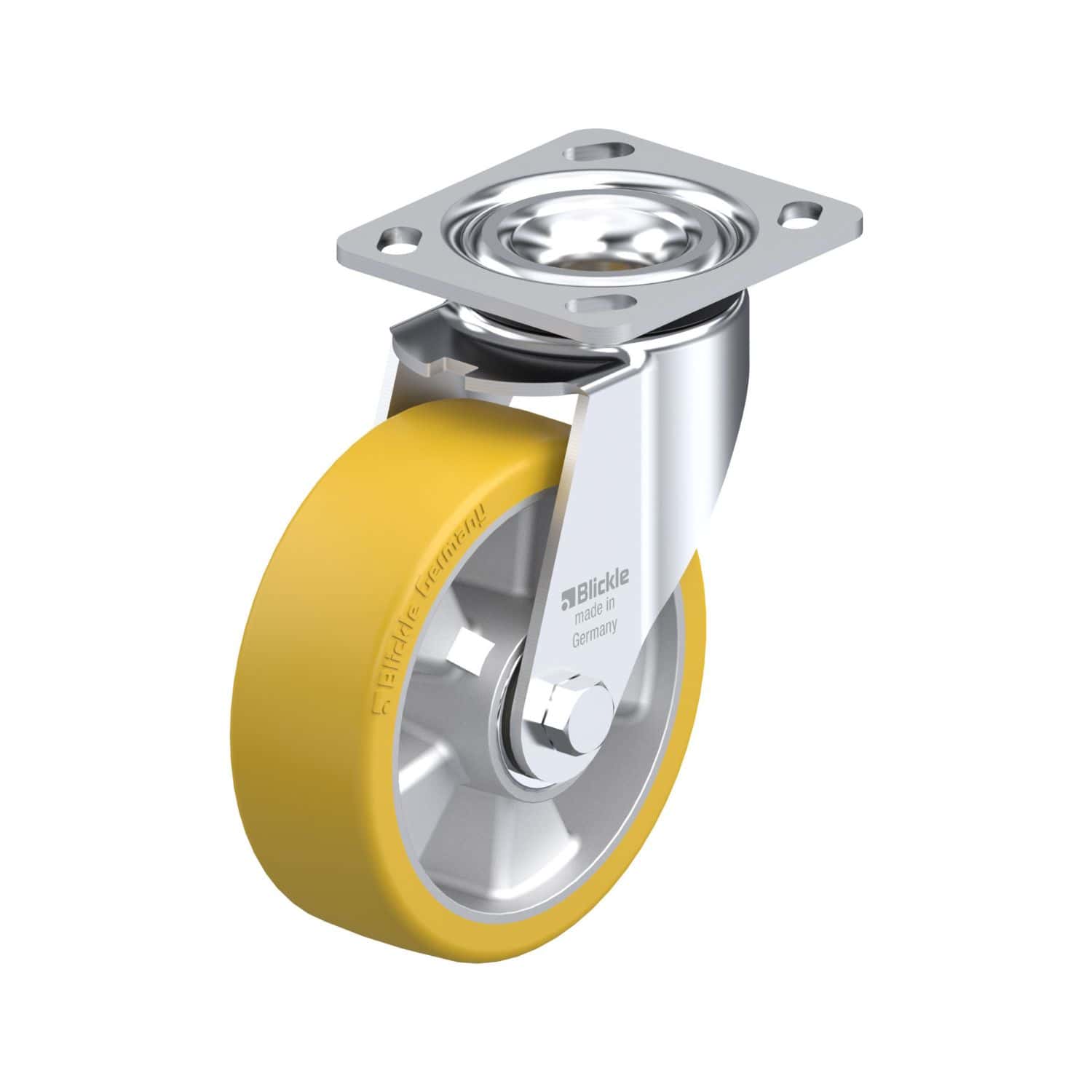

- Heavy Duty Design: The LEH-ALTH 150K-14 caster is built to handle heavy loads, making it ideal for industrial use.
- Polyurethane Tread: The Blickle Extrathane® polyurethane tread offers high abrasion resistance, non-marking, and non-staining properties, ensuring floor protection and longevity.
- Durable Construction: The aluminum wheel center provides added strength and durability, ensuring the caster can withstand rigorous use.
- Precision Ball Bearings: Equipped with ball bearings, this caster ensures smooth and maintenance-free operation.
| SKU | LEH-ALTH 150K-14 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 7-1/2 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1255 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 4-1/2 Inches x 4 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-5/8 Inches x 3-5/8 Inches x 3 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Industrial Use: Suitable for heavy duty applications in industrial settings.
- Heavy Equipment: Ideal for use with heavy machinery and equipment that require reliable mobility solutions.
- Floor Protection: The polyurethane tread ensures that floors are protected from damage, making it suitable for environments where floor preservation is important.
