Overview
Benefits

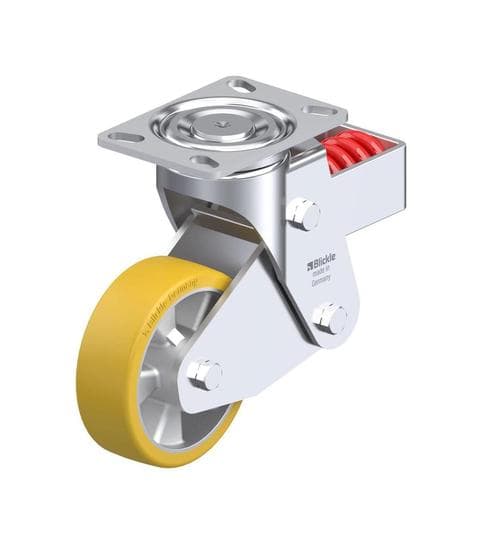

- Heavy Duty Design:Â The LHF-ALTH 150K-16 is built with a pressed steel swivel rig and a top plate fitting, ensuring it can handle substantial loads.
- Spring-Loaded Mechanism:Â Equipped with a steel spring, this caster provides shock absorption, distributing loads evenly and reducing noise levels during transportation.
- Polyurethane Wheel:Â The caster wheel is made from Blickle Besthane polyurethane elastomer, offering high abrasion resistance, non-marking, and non-staining properties. This ensures floor protection and reliable performance in various environments.
- Maintenance-Free:Â The precision ball bearings in the wheel ensure smooth and maintenance-free operation.
| SKU | LHF-ALTH 150K-16 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Extrathane Polyurethane Elastomer |
| Overall Height | 9-7/16 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1435 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 92 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Blickle Extrathane Polyurethane Wheels
Blickle Extrathane® polyurethane wheels are built for heavy-duty performance, combining high load capacity with exceptional durability. These wheels feature a high-quality, reaction-injected polyurethane-elastomer tread that offers outstanding resistance to abrasion, cuts, and tear propagation—making them ideal for industrial environments with thresholds, sharp obstacles, and medium-speed transport.
Barron Equipment offers a full range of Extrathane wheel solutions, including:
- GTH Series: Cast iron wheel centers for rugged durability and high load capacity
- ALTH Series: Lightweight aluminum wheel centers for logistics and mobile equipment
- SETH & VSTH Series: Welded steel centers for extreme-duty applications
These wheels are available in swivel and rigid caster formats, with multiple mounting options and bearing types. The tread is non-marking, chemically bonded to the wheel core, and designed for quiet operation and good floor preservation.
Check out the video below to learn more.
Applications
- Industrial Use:Â Suitable for heavy-duty applications in industrial settings where high load capacity and durability are required.
- Transportation:Â Ideal for transporting heavy equipment and materials, thanks to its spring-loaded mechanism that reduces noise and absorbs shocks.
- Maintenance-Free:Â The precision ball bearings in the wheel ensure smooth and maintenance-free operation.
