Overview

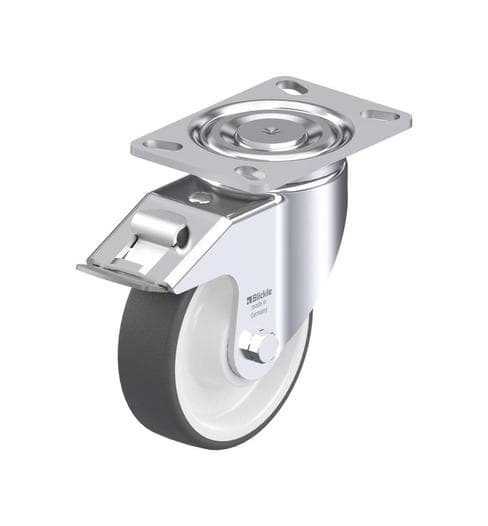

The LH-POTH 150K-16-FI Blickle heavy duty swivel caster is designed for demanding applications requiring robust and reliable mobility solutions. This industrial swivel caster features a heavy-duty design with a top plate fitting and a brake system known as 'stop-fix'. The wheel is constructed with a thermoplastic polyurethane tread and a heavy-duty nylon wheel center, ensuring durability and performance.
Benefits
- Heavy Duty Design: Built to withstand rigorous use, making it ideal for industrial applications.
- Brake System: Equipped with the 'stop-fix' brake system for secure locking.
- Durable Materials: The thermoplastic polyurethane tread and heavy-duty nylon wheel center provide excellent wear resistance and longevity.
- Floor Protection: The polyurethane caster wheels offer floor protection, preventing damage to surfaces.
- Precision Ball Bearings: Maintenance-free precision ball bearings ensure smooth and reliable performance.
| SKU | LH-POTH 150K-16-FI | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Maximum Temperature | 160 |
| Wheel Width | 1-3/4 Inches | Wheel Material | Thermoplastic Polyurethane |
| Overall Height | 7-3/4 Inches | Bearing Type | Ball Bearing |
| Core Material | Nylon 6 | Weight Capacity | 1100 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 94 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Thermoplastic Polyurethane Wheels
Thermoplastic polyurethane (TPU) wheels offer a high-performance solution for environments requiring quiet operation, floor protection, and resistance to wear and chemicals. These wheels are ideal for hygiene-sensitive areas, heavy-duty transport, and applications demanding both comfort and durability.
Barron Equipment features a wide range of TPU wheel solutions, including Blickle’s PATH and POTH series:
- PATH Series: Injection-molded TPU tread bonded to a nylon core, These wheels are non-marking, corrosion-resistant, and optimized for noise reduction and floor preservation . Available in swivel and rigid caster formats with options like Stop-Fix brakes.
- POTH Series: Soft TPU tread with a hardness of 94 Shore A, cast onto an impact-resistant nylon center. Also includes a high load capacity.
These wheels are available in multiple sizes and bearing types, including ball, roller, and corrosion-resistant options.
For more information, check out the video below.
Applications
The LH-POTH 150K-16-FI Blickle heavy duty swivel caster is suitable for a wide range of industrial applications, including:
- Industrial environments: Suitable for use in factories, warehouses, and other industrial settings.
- Heavy equipment: Ideal for moving heavy machinery and equipment.
- Material handling: Perfect for carts, trolleys, and other material handling equipment.
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics, and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
