| SKU | 70.83.51.FAPB | 2D Drawing | 2D Drawing |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Weight Capacity | 2300 Lbs |
| Wheel Width | 3 Inches | Tread Style | Flat Tread |
| Overall Height | 10-1/8 Inches | Wheel Material | Polyurethane |
| Core Material | Cast Iron | Bearing Type | Ball Bearing |
| Caster Type | Swivel | Mounting Type | Large Top Plate |
| Top Plate | 4-1/2 Inches x 6-1/2 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-7/16 Inches - 3-3/8 Inches x 4-15/16 Inches - 5-1/4 Inches | Fork Finish | Zinc Plated |
OverviewÂ

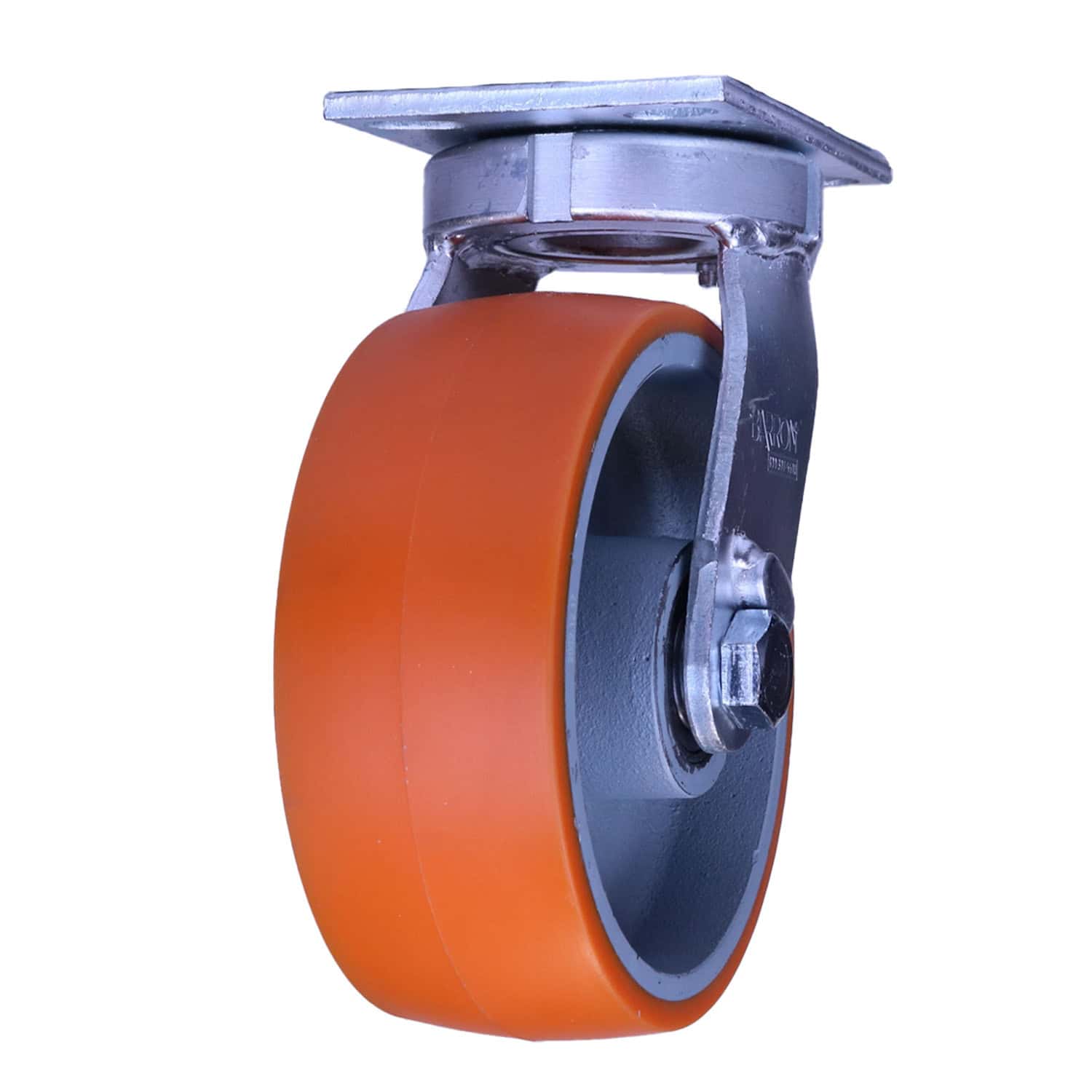

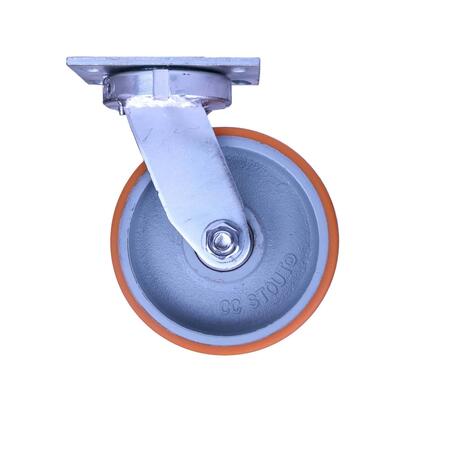

The 8 Inch Heavy Duty Kingpinless Swivel Caster with Flat Tread Polyurethane Wheel and Large Top Plate (Item ID: 70.83.51.FAPB) is designed for demanding industrial applications. This caster is part of the 70 series, known for its high load capacity and robust construction.Â
BenefitsÂ
- Heavy-Duty Construction: The kingpinless design eliminates the weakest link found in traditional kingpin casters, providing enhanced durability and longevity. This design uses hardened steel inner and outer raceways, distributing the load to a single row of hardened ball bearings.Â
- Polyurethane Wheel: Offers superior floor protection, longer service life, low rolling resistance, high dynamic load capacity, and high tear resistance.Â
- Sealed Ball Bearings: The ball bearings are sealed and pre-lubricated, providing better ergonomics and less maintenance.Â
- Large Top Plate: Ensures stability and supports higher weight loads.Â
Learn more about our polyurethane caster wheels here.
ApplicationsÂ
This caster is ideal for various industrial applications, including:Â
- Industrial Manufacturing: Suitable for heavy machinery and equipment.Â
- Automotive Industry: Used in assembly lines and transport carts.Â
- Food Service: Perfect for heavy-duty kitchen equipment.Â
- Material Handling: Efficient for warehouse carts and dollies.Â
- Aerospace Industry: Used in aircraft assembly and maintenance.Â
Read our case study on Kinpinless Casters to see how a solar car club at Iowa State University utilized Barron casters to streamline their processes.
Selection Assistance
Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!
