| SKU | 60.82.50.PHR.BIB | Brake Type | Built in Brake |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Weight Capacity | 1250 Lbs |
| Wheel Width | 2 Inches | Tread Style | Flat Tread |
| Overall Height | 9-1/2 Inches | Wheel Material | Phenolic |
| Core Material | Aluminum | Bearing Type | Roller Bearing |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Top Plate | 4 Inches x 4-1/2 Inches | Axle Type | Zerk Axle |
| Top Plate Holes | 2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 Inches | Fork Finish | Zinc Plated |
Overview

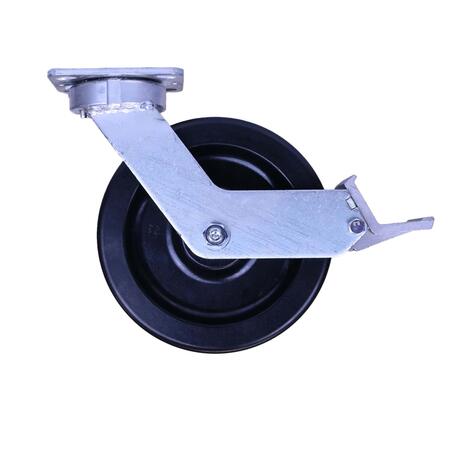

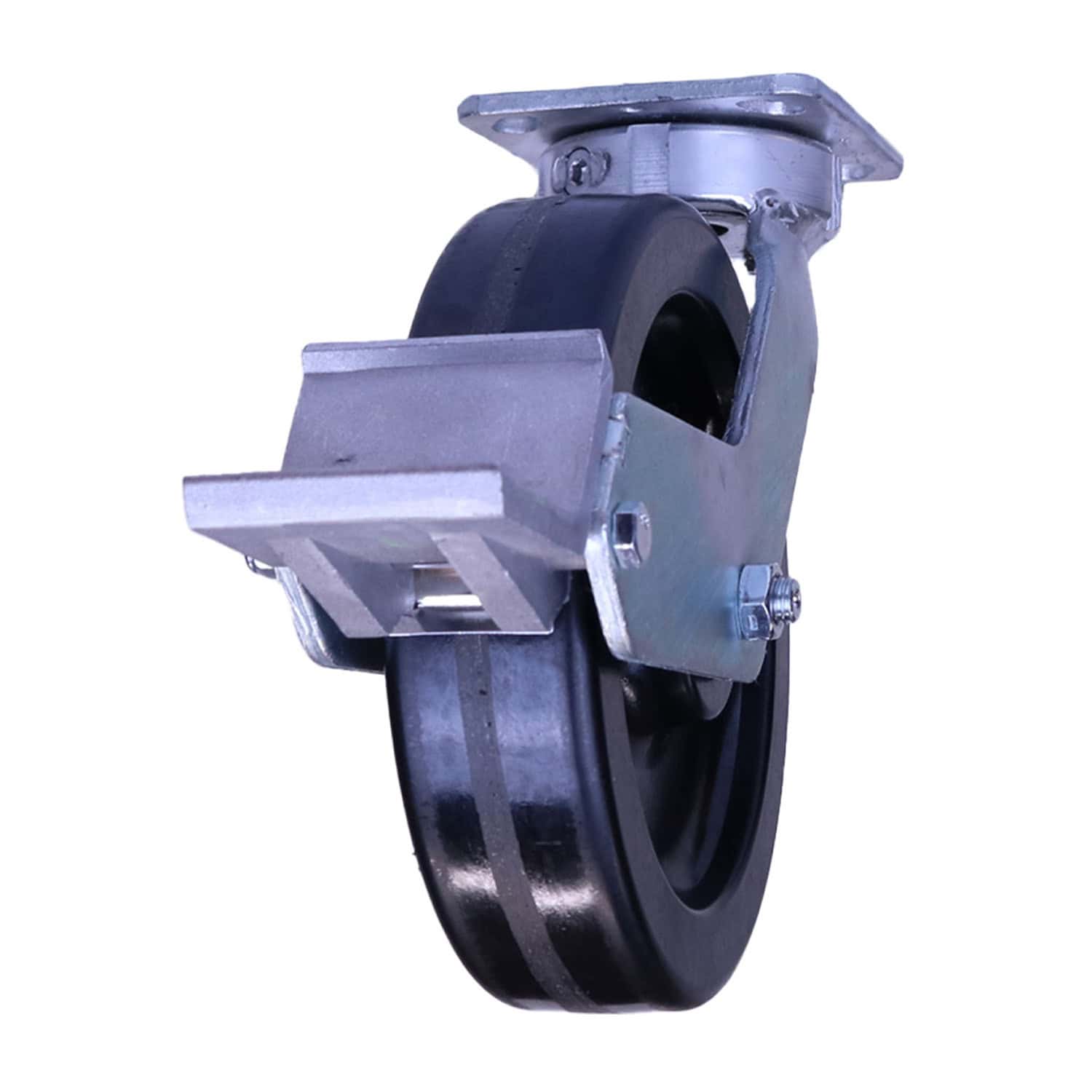

This kingpinless swivel caster has a phenolic caster wheel with a diameter of 8 inches and is ideal for heavy duty industrial applications. This swivel caster has more benefits and better overall ergonomics than the standard industrial caster. The 60.82.50.PHR.BIB features roller bearings for reliable performance and includes a built-in brake for added security and stability in your workplace.
Benefits
The main benefit of the kingpinless series casters is that they eliminate the use of the kingpin which allows for longer use, better ergonomics and more efficiency. In addition to benefits of the overall kingpinless caster category, phenolic wheels have their own benefits such as being resistant to oil, grease, gasoline and mild acids. Phenolic wheels are also known for their durability in high-temperature environments and their ability to handle heavier loads than many other wheel materials.
The roller bearings in this model provide excellent load distribution and durability for continuous use applications, while the built-in brake (BIB) provides reliable locking capability when movement is not desired, making this caster ideal for applications where both performance and security are required.
The larger 8-inch wheel diameter provides additional benefits including smoother operation over uneven surfaces, reduced rolling resistance, and the ability to more easily overcome small obstacles on the floor. This makes these casters particularly suitable for applications where equipment needs to be moved over expansion joints, door thresholds, or slightly rough surfaces.
Applications
Applications for large diameter phenolic kingpinless casters with built-in brakes include industrial manufacturing, heavy material handling, waste management, foundries, and applications where chemical resistance and security are needed. Phenolic wheels are particularly well-suited for environments where exposure to chemicals, oils, and moderate heat is common, and the larger wheel size makes them excellent for facilities with uneven floors or frequent movement across thresholds.
These casters perform exceptionally well in food processing plants, chemical facilities, automotive shops, and industrial kitchens where both maneuverability and the ability to lock equipment in place are required. Click here to learn more about our phenolic wheels.
This model comes equipped with a built-in brake ("BIB") for added safety and stability. The built-in brake provides secure locking when needed while maintaining the mobility benefits of a swivel caster. For more information about our caster braking options, check out our blog post about the variety of brakes we offer - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types.
If your business requires a heavy duty swivel caster solution, you will want to review our Heavy Duty Kingpinless Casters category. Learn more about the benefits of kingpinless swivel casters on our website.
Read our case study on Kinpinless Casters to see how a solar car club at Iowa State University utilized Barron casters to streamline their processes.
Selection Assistance
Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!
