Overview

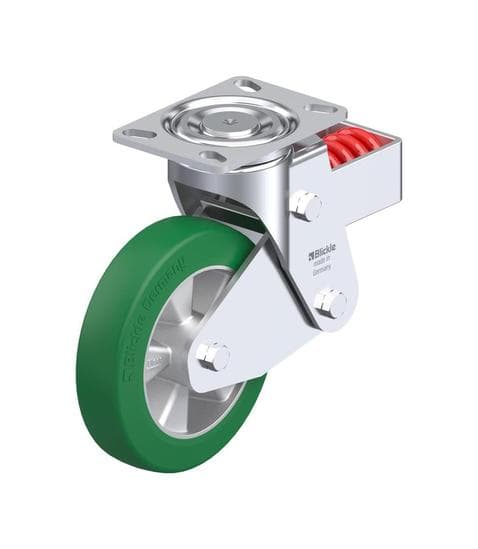

The Blickle LHF-ALST 200K-16 heavy duty swivel caster is designed to provide top quality mobility solutions for various industrial applications. Featuring high quality materials and precision ball bearings, this caster ensures reliable performance and durability. The caster wheel is made from polyurethane, offering excellent floor protection and a smooth rolling experience. Additionally, it is equipped with a maintenance-free spring mechanism and is particularly resistant to shocks and impact due to four specially-shaped, hardened bearing seats.
Benefits
- Heavy Duty Swivel Caster: With a dynamic load capacity of 1655 lbs, this caster is ideal for heavy duty applications.
- Precision Ball Bearings: Maintenance-free precision ball bearings ensure smooth and reliable operation.
- Polyurethane Wheel: The polyurethane caster wheel provides superior floor protection and reduces noise during movement.
- Maintenance-Free Spring Mechanism: The integrated spring mechanism enhances durability and reduces maintenance needs.
- Shock and Impact Resistance: Four specially-shaped, hardened bearing seats provide exceptional resistance to shocks and impact.
| SKU | LHF-ALST 200K-16 | Minimum Temperature | -5 |
|---|---|---|---|
| Wheel Diameter | 8 Inches | Maximum Temperature | 160 |
| Wheel Width | 2 Inches | Wheel Material | Blickle Softhane Polyurethane Elastomer |
| Overall Height | 10-7/16 Inches | Bearing Type | Ball Bearing |
| Core Material | Die-Cast Aluminium | Weight Capacity | 1655 lbs at 2.5 mph |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Application | Heavy Duty | Top Plate | 6-1/4 Inches x 4-1/2 Inches |
| Hardness Rating | 75 Shore A | Top Plate Holes | 2-7/16 Inches x 4-15/16 Inches / 3-3/8 Inches x 5-1/4 Inches |
Blickle Softhane® Polyurethane Wheels
Blickle Softhane® polyurethane wheels are designed for exceptional operational comfort, quiet mobility, and superior floor protection. These wheels feature an extra-thick, elastic polyurethane-elastomer tread that is gentle on surfaces, abrasion-resistant, and non-marking—even in sensitive environments.
Barron Equipment offers a full range of Softhane® wheel solutions, including:
- ALST Series: Wheels with Softhane® tread cast onto die-cast aluminum centers. Ideal for uneven surfaces and sharp edges, these wheels offer a Shore hardness of 75 A and are available in swivel and rigid caster formats.
- GST Series: Heavy-duty wheels with Softhane® tread bonded to rugged gray cast iron centers. Built for demanding industrial applications requiring high load capacity and durability.
These wheels are resistant to a wide range of aggressive substances (excluding aromatic solvents, hot water, and steam), and are available in antistatic versions with gray treads. Custom Shore hardness values and colors are available upon request.
Check out the video below to learn more about Softhane polyurethane wheels.
Applications
The Blickle LHF-ALST 200K-16 heavy duty swivel caster is suitable for a wide range of applications, including:
- Industrial carts and trolleys
- Warehouse equipment
- Manufacturing machinery
- Heavy duty shelving units
Selection Assistance
Not sure which Blickle caster would work best for your application? We have a whole team of caster experts dedicated to finding the perfect caster for your business, improving ergonomics and saving your company money. Fill out the form below and a Barron caster representative will be in touch soon!
