Overview
Barron Equipment offers a wide selection of loading dock plate products designed to help workers move items safely between different surfaces. These tools help bridge the gap between a dock, a trailer, or a work area so materials can be moved smoothly and with less risk. They are used in warehouses, shipping areas, retail backrooms, and other places where workers need to load and unload items throughout the day. Barron provides dependable options such as portable dock plates, dock plate levelers, docking plates, and dock boards for facilities that need stronger support. Each product is designed to help create a safer and more organized loading environment, especially when surfaces are uneven or when trailers arrive at different heights.
| SKU | Width | Length | Weight of Product | Weight Capacity | Leg Length | Height Up (Pallet Truck - 14%) | Standard Lip | Optional Features (By Request Only) |
|---|---|---|---|---|---|---|---|---|
| A3024 | 30 Inches | 24 Inches | 40 Lbs | 3300 Lbs | 7 Inches | 1 Inch | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3030 | 30 Inches | 30 Inches | 46 Lbs | 2650 Lbs | 7 Inches | 2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3036 | 30 Inches | 36 Inches | 53 Lbs | 2200 Lbs | 7 Inches | 3 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3048 | 30 Inches | 48 Inches | 67 Lbs | 1650 Lbs | 9 Inches | 5 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3624 | 36 Inches | 24 Inches | 47 Lbs | 4000 Lbs | 7 Inches | 1 Inch | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3630 | 36 Inches | 30 Inches | 56 Lbs | 3200 Lbs | 7 Inches | 2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3636 | 36 Inches | 36 Inches | 64 Lbs | 2650 Lbs | 7 Inches | 3 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3642 | 36 Inches | 42 Inches | 72 Lbs | 2250 Lbs | 9 Inches | 4 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3648 | 36 Inches | 48 Inches | 80 Lbs | 2000 Lbs | 9 Inches | 5 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3654 | 36 Inches | 54 Inches | 90 Lbs | 1750 Lbs | 11 Inches | 6 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A3660 | 36 Inches | 60 Inches | 98 Lbs | 1600 Lbs | 11 Inches | 7 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4824 | 48 Inches | 24 Inches | 58 Lbs | 5300 Lbs | 7 Inches | 1 Inch | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4830 | 48 Inches | 30 Inches | 69 Lbs | 4250 Lbs | 7 Inches | 2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4836 | 48 Inches | 36 Inches | 80 Lbs | 3550 Lbs | 7 Inches | 3 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4842 | 48 Inches | 42 Inches | 94 Lbs | 3000 Lbs | 9 Inches | 4 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4848 | 48 Inches | 48 Inches | 105 Lbs | 2650 Lbs | 9 Inches | 5 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4860 | 48 Inches | 60 Inches | 130 Lbs | 2100 Lbs | 11 Inches | 7 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A4872 | 48 Inches | 72 Inches | 154 Lbs | 1750 Lbs | 13 Inches | 8 1/2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A6024 | 60 Inches | 24 Inches | 69 Lbs | 6650 Lbs | 7 Inches | 1 Inch | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A6030 | 60 Inches | 30 Inches | 83 Lbs | 5300 Lbs | 7 Inches | 2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A6036 | 60 Inches | 36 Inches | 97 Lbs | 4400 Lbs | 7 Inches | 3 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A6048 | 60 Inches | 48 Inches | 127 Lbs | 3300 Lbs | 9 Inches | 5 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A7230 | 72 Inches | 30 Inches | 97 Lbs | 6400 Lbs | 7 Inches | 2 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A7236 | 72 Inches | 36 Inches | 113 Lbs | 5300 Lbs | 7 Inches | 3 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
| A7248 | 72 Inches | 48 Inches | 149 Lbs | 4000 Lbs | 9 Inches | 5 Inches | 11 Inches | Refrigerated Lip (14 Inches), EZ-Roll Handles, Self-Storing Handles |
Features and Benefits

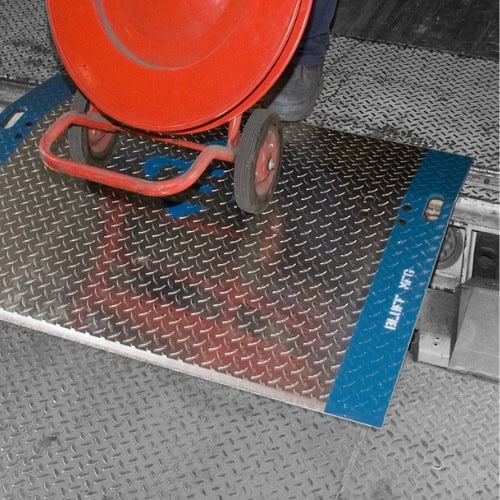

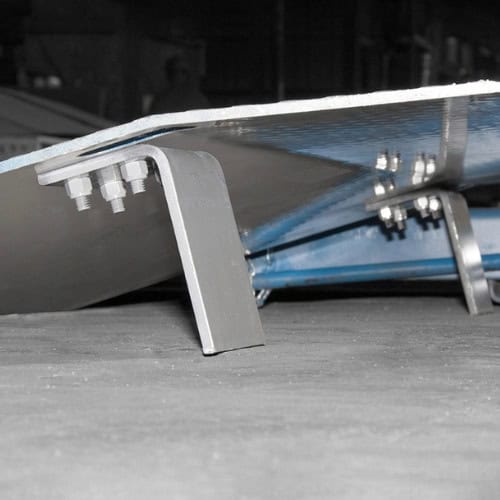

Dock plates and docking plates are built to create a smooth and steady surface for moving carts, pallet jacks, and other non‑powered equipment. A portable dock plate is lightweight and easy to move, making it helpful for quick or temporary loading tasks. Many plates include a diamond pattern surface that improves traction and helps prevent slipping, even when the plate is used in busy or fast‑paced areas. Some models also include stabilizing legs or features that help keep the plate in place while workers move across it. These tools help reduce bumps, sudden drops, and uneven surfaces that can cause accidents or slow down work. Dock boards offer stronger support for heavier loads and help bridge the gap more securely when equipment needs extra stability. Whether you choose a simple plate or a dock plate leveler, these products help improve safety, reduce strain on workers, and support smoother loading operations.
Applications
Common uses for dock plates, docking plates, and dock boards include:
- Bridging small height gaps between a dock and a trailer
- Creating a temporary loading surface for carts and pallet jacks
- Helping workers load and unload items when no dock leveler is available
- Providing portable options for changing loading locations
- Improving safety in light‑duty loading areas
- Supporting safe movement across uneven or raised surfaces
- Offering flexible solutions for facilities with mixed trailer heights
Dock plates are used in many different environments where workers need a safe way to move materials across uneven surfaces. A loading dock plate helps reduce the risk of slips or sudden drops, especially when workers are moving items by hand. Portable dock plates are especially helpful when loading needs change throughout the day or when trailers arrive at different heights. For heavier tasks or equipment that requires more support, dock boards provide a stronger and more stable option. By choosing the right docking plates, facilities can make loading tasks safer, faster, and more efficient.
Selection Assistance
Choosing the right dock plate depends on several factors, including the weight of the items you move, the type of equipment you use, and the height difference between surfaces. Barron Equipment’s team can help you compare portable dock plates, docking plates, and dock boards to find the best fit for your workspace. Our specialists look at your dock layout, traffic levels, and safety needs to recommend equipment that supports safe and steady loading. Whether you need a simple plate for light‑duty tasks or a dock plate leveler for more controlled transitions, our team is ready to help you choose the right solution for your facility.
