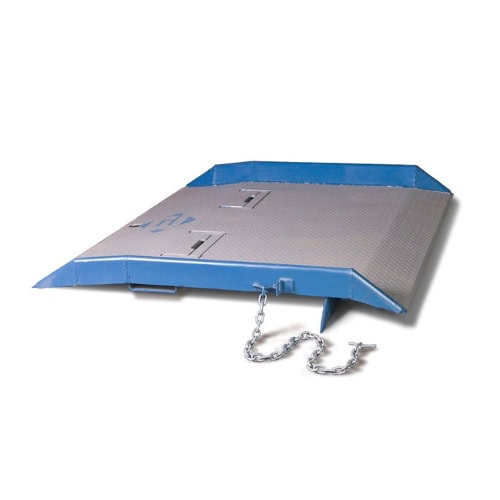

Bluff Portable Container Ramps – Model CR – 15000 Lbs. Weight Capacity – Various Dimensions Available

Item ID: 15CR Category

Lead Time: 3 days

From $1,876.67

Overview

Barron Equipment offers strong and reliable Container Ramps that make loading and unloading shipping containers safe and easy. These ramps create a smooth bridge from the ground to the container floor, so forklifts and pallet jacks can move in and out without trouble. If you need a Shipping Container Ramp, Container Loading Ramp, or a Ramp for Shipping Container, Barron has options you can trust. Our goal is to help businesses work safely and keep things moving. These ramps are often used in warehouses, shipping yards, and outdoor areas where containers need easy access. By using the right ramp, you can reduce risks, improve workflow, and make loading faster and safer.

SKUWidthLengthWeight of ProductWeight CapacityLeg LengthHeight Up (Pallet Truck - 14%)Height Up (Forklift - 19%)3 Wheel Forklift Capacity4-Wheel Forklift CapacityCurb HeightOptional Features
15CR604860 Inches48 Inches418 Lbs15000 Lbs9 Inches60 Inches48 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR606060 Inches60 Inches497 Lbs15000 Lbs11 Inches60 Inches60 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR607260 Inches72 Inches577 Lbs15000 Lbs13 Inches60 Inches72 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR608460 Inches84 Inches656 Lbs15000 Lbs17 Inches60 Inches84 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR609660 Inches96 Inches735 Lbs15000 Lbs17 Inches60 Inches96 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR724872 Inches48 Inches495 Lbs15000 Lbs9 Inches72 Inches48 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR726072 Inches60 Inches598 Lbs15000 Lbs11 Inches72 Inches60 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR727272 Inches72 Inches701 Lbs15000 Lbs13 Inches72 Inches72 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR727872 Inches78 Inches752 Lbs15000 Lbs17 Inches72 Inches78 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR728472 Inches84 Inches803 Lbs15000 Lbs17 Inches72 Inches84 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR729672 Inches96 Inches874 Lbs15000 Lbs17 Inches72 Inches96 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR844884 Inches48 Inches562 Lbs15000 Lbs9 Inches84 Inches48 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR846084 Inches60 Inches678 Lbs15000 Lbs11 Inches84 Inches60 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR847284 Inches72 Inches793 Lbs15000 Lbs13 Inches84 Inches72 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR847884 Inches78 Inches851 Lbs15000 Lbs17 Inches84 Inches78 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts
15CR849684 Inches96 Inches1025 Lbs15000 Lbs17 Inches84 Inches96 Inches3000-3500 Lbs5000 Lbs4 Inches14 Inches for Refrigerated Containers, Speedy Board Cutouts

Features and Benefits

Forklift Ramps for Containers are built for heavy-duty jobs. They are made from strong steel to handle big loads and have surfaces that give good traction so wheels don’t slip. Chains lock the ramp to the container so it stays in place, and raised edges help drivers stay centered. Forklift pockets make moving the ramp simple, and different sizes are available to fit your container and load needs. These ramps are designed to last and meet safety standards, so you can trust them in busy work areas. Using a Container Loading Ramp helps prevent accidents, saves time, and keeps loading areas organized. They also allow you to create temporary loading points wherever needed, which is great for job sites or places without permanent docks.

Applications

Common uses for Container Loading Ramps include:

  • Giving forklifts safe access to containers at ground level
  • Making a smooth path for pallet jacks and other equipment
  • Helping with temporary loading at job sites or yards
  • Improving workflow in warehouses and shipping centers
  • Providing portable solutions where there is no permanent dock

These ramps make loading safer and faster, reducing risks and improving productivity. They are perfect for businesses that handle containerized freight and need a reliable way to move goods without lifting hazards or makeshift solutions.

Selection Assistance

Choosing the right Ramp for Shipping Container starts with knowing your needs. Think about the weight of your loads and the size of your forklift. Check the container height and choose a ramp that fits. Look for safety features like side edges, chains, and non-slip surfaces. Decide if you want a ramp that can be moved easily with a forklift or one that stays in place. Barron Equipment can help you pick the best Shipping Container Ramp for your space and your work. Our team will review your site layout, traffic patterns, and safety requirements to make sure you get the right ramp for your operation.

Product Specification

Product Width

, ,

Product Length

48 In., 60 in., 72 in., 78 in., 84 in., 96 in.

Weight Capacity

3 Wheel Forklift Capacity

3000-3500 Lbs

4-Wheel Forklift Capacity

5000 Lbs

Curb Height

4 Inches

Resources

View PDF (Container-Ramp-Model-CR-Product-Overview.pdf)

View PDF (Dock-Board-Plate-Container-Ramp-Selection-Guide-6.pdf)

View PDF (Dock-Boards-And-Plates-Lineup-6.pdf)
