Overview
Facilities that move desks every day need equipment that can handle the repetition, the flooring challenges, and the wear that comes with high-volume use. This heavy duty desk lift is built for exactly that kind of workload. Equipped with 3½” swivel casters and an extra-high lift range of 5½” to 10¾”, it delivers the ground clearance and rolling performance needed to transport loaded desks across carpet, over raised thresholds, through older hallways, and across uneven surfaces without catching or dragging.

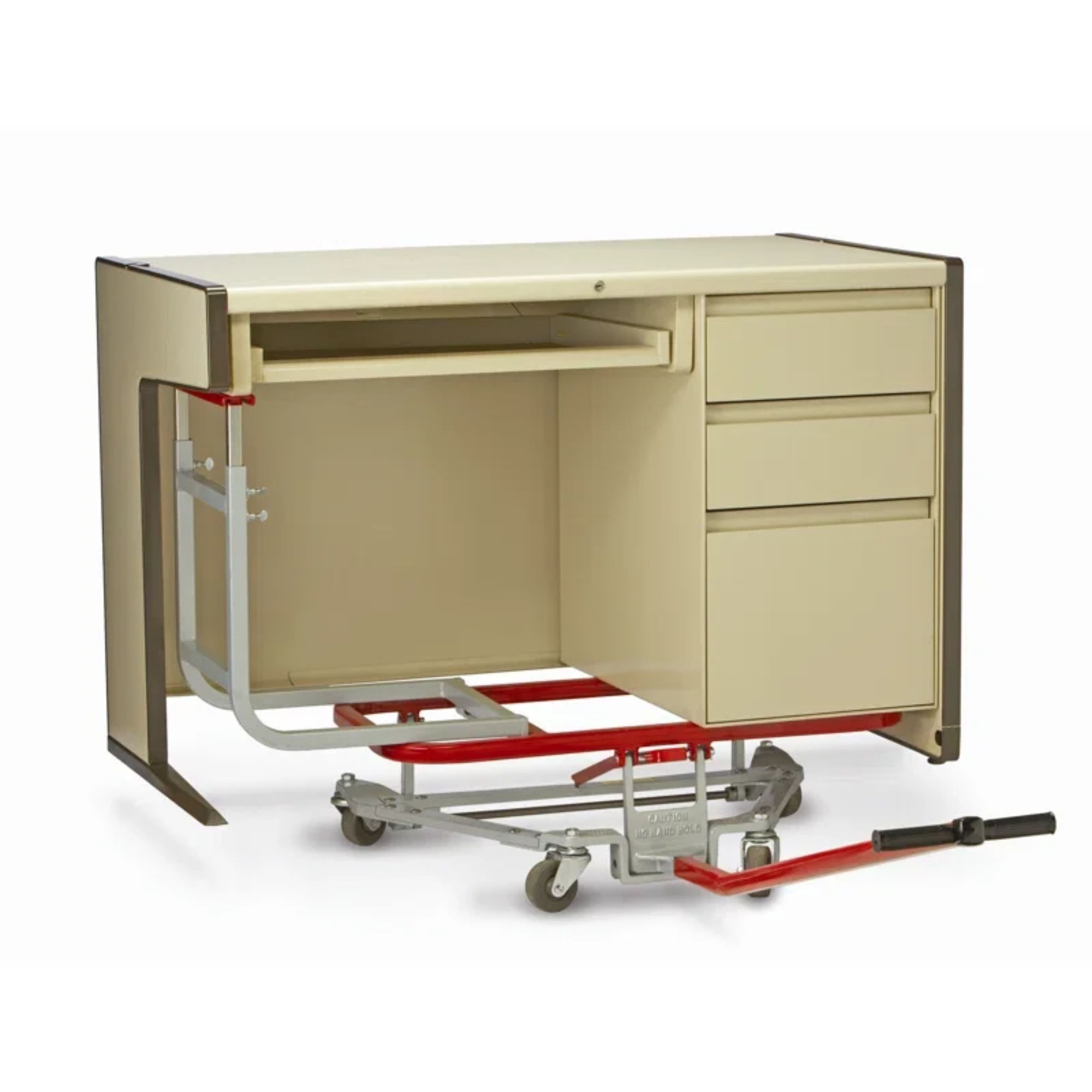

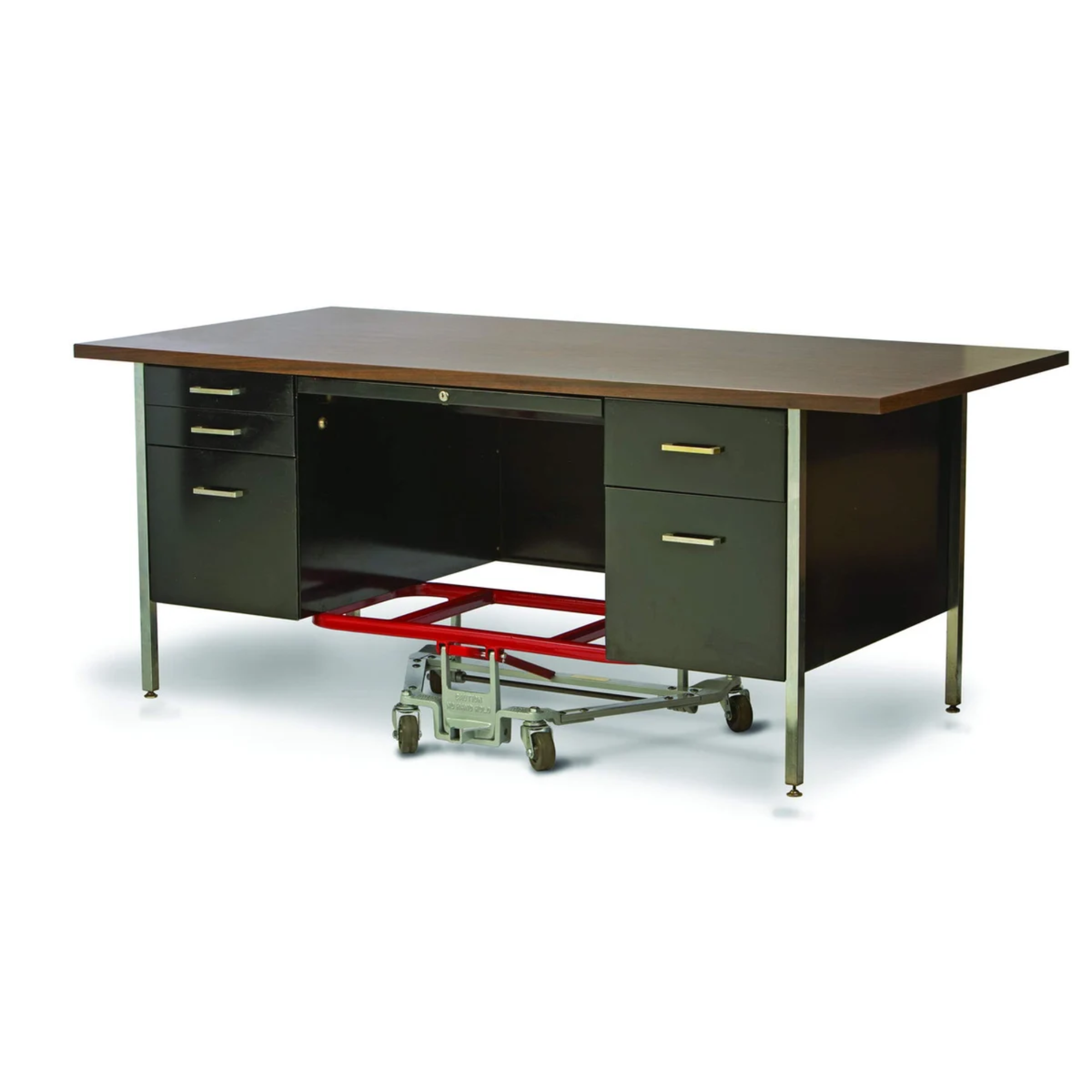

Rated at 600 lbs, this heavy duty desk lifter allows one person to raise and roll fully loaded desks, lab tables, and heavy office furniture without emptying drawers or calling for a second worker. It is available in three frame widths — 32″, 40″, and 46″ — and manufactured by Raymond Products in Minneapolis, Minnesota with a lifetime warranty against manufacturing defects.
Features and Benefits
The 3½” non-marking swivel casters are the largest in the Mighty King lineup below the Extra Heavy Duty series. The increased wheel diameter provides significantly better performance on commercial carpet, rubber transition strips, tile grout lines, and the kind of worn or uneven flooring found in older school buildings, government offices, and university campuses. Where smaller casters would catch or require extra force to push, the 3½” wheels maintain smooth, controlled movement throughout the entire route.
The lift range of 5½” to 10¾” provides more clearance beneath the desk than the Standard or Medium Duty models. This extra height is especially valuable when working with furniture that has a lower base profile, thicker leg brackets, or cross braces that sit close to the floor. The additional clearance also reduces the risk of the lift frame contacting raised thresholds or floor transitions during transport.

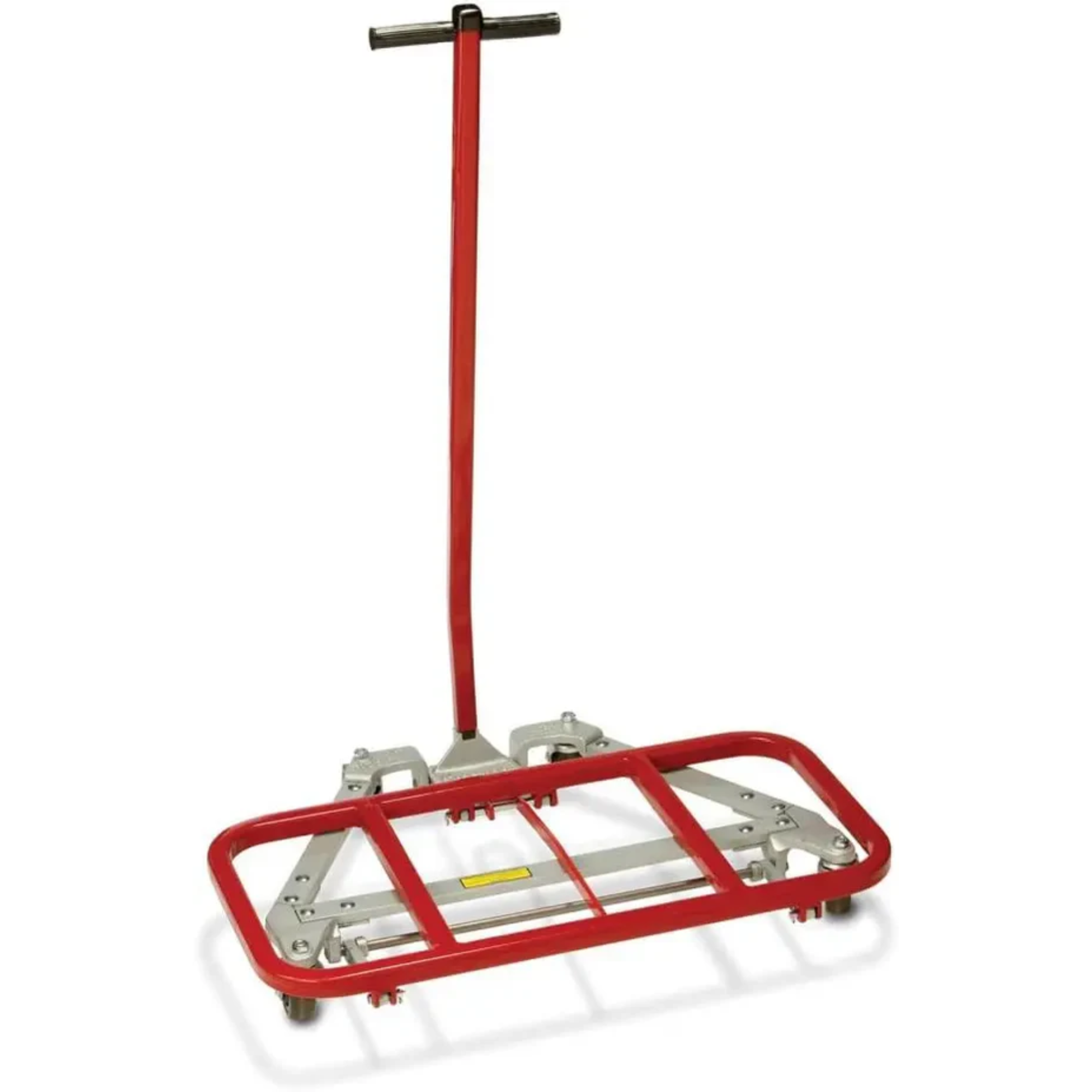

The heavy-gauge steel frame and casting are powder-coated for corrosion resistance and long-term durability under daily use. The lift frame is coated with Raymond’s skid-resistant red vinyl, which grips the underside of the desk and protects the furniture from scratches. An ergonomic handle provides comfortable leverage for one-person operation, and a safety latch locks the desk in the raised position until the operator activates the trip release.
Available Widths
- Model 3500-32 – 32″ Width — Fits standard single-pedestal desks and compact classroom workstations.
- Model 3500-40 – 40″ Width — Accommodates most teacher desks, executive desks, and double-pedestal configurations.
- Model 3500-46 – 46″ Width — Designed for large executive desks, L-shaped desk bases, and oversized workstations.
All three widths share the same 600 lb load capacity, 5½” to 10¾” lift range, and 3½” non-marking swivel casters. Select the width that matches the inside span between your desk legs or pedestal supports.
Applications
School districts and universities that reconfigure classrooms on a regular basis are the primary users of this heavy duty desk lift. Custodial and maintenance crews can reposition teacher desks, relocate lab furniture, and stage testing layouts day after day without the physical strain or floor damage that comes from manual lifting and dragging. The 3½” casters handle the mixed-surface environments — carpeted classrooms, tiled hallways, rubber transition strips at doorways — found in most K-12 and higher education buildings.
Large office campuses undergoing frequent tenant rotations, facilities with older flooring that has settled or become uneven, and government buildings with raised thresholds between rooms all benefit from the extra clearance and rolling performance this heavy duty desk lifter provides. Warehouses and industrial environments that need to transport heavy workbenches or industrial desks across concrete floors with minor surface imperfections will also find this model more reliable than lighter-duty options for sustained daily use.
Selection Assistance
The heavy duty Model 3500 is the right choice for facilities that move desks frequently — multiple times per week or daily — and have challenging flooring conditions. If your building has smooth, level floors and moves happen only occasionally, the Standard Duty Model 2000 (2½” casters) or Medium Duty Model 2300 (3″ casters) will handle the job at a lower price point. For the most demanding environments — warehouses, high-volume move operations, or rough concrete — the Extra Heavy Duty Model 4000 with 4″ casters offers maximum performance.
To determine the right frame width, measure the inside distance between the desk legs or pedestal supports. Compatible accessories — including the single pedestal adapter (Model 1800) and computer/utility table attachment (Model 1600) — expand the range of furniture you can move with any Mighty King heavy duty desk lift.
Need help choosing the right model for your facility? Barron Equipment’s material handling team can evaluate your environment and recommend the best configuration. Fill out the form below or contact us directly.
