Name: Wall Mounted Jib Crane – 311 Series 250–10,000 lb Capacities
Brand: Barron Equipment
SKU: 311 JIB CRANES
Availability: InStock

Overview

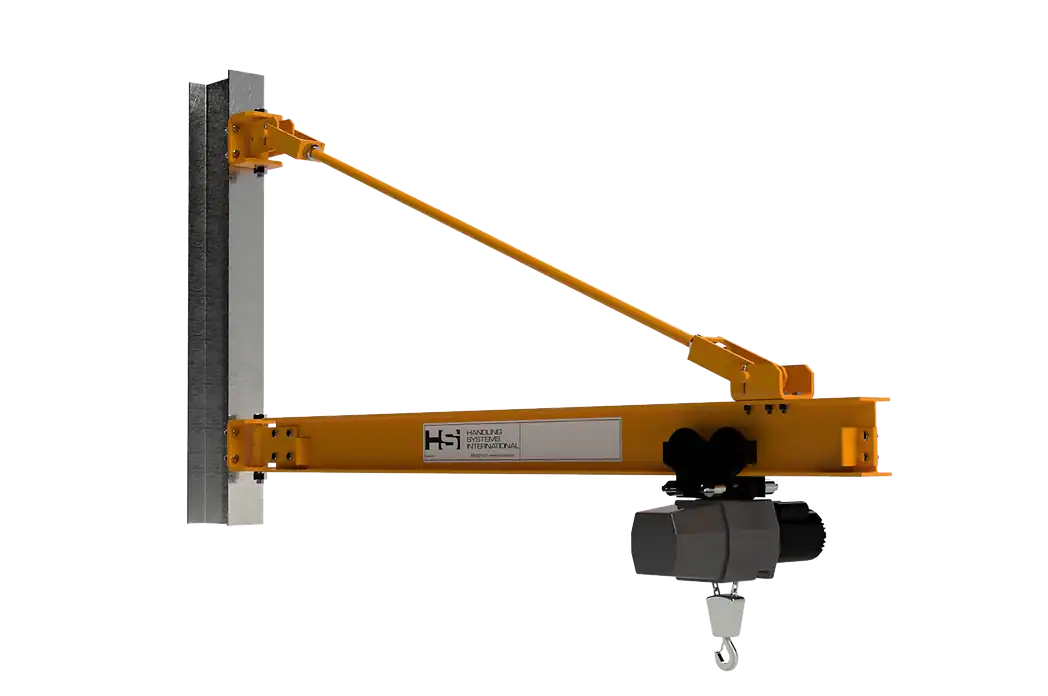

The 311 Series wall mounted jib crane from Barron Equipment is a versatile and cost‑effective solution for localized material handling. Designed for wall or column mounting this tie rod style jib crane supports smooth rotation and reliable lifting performance in workstations loading areas and manufacturing environments. Capacities range from 250 lb to 10,000 lb with multiple span options to fit your facility layout.

Features and Benefits

The 311 Series is engineered for efficiency durability and ease of use in demanding industrial applications.

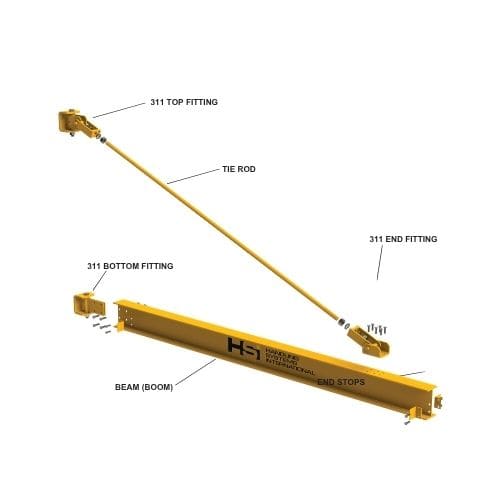

Tie rod design reduces structural deflection and improves load stability
Wall or column mounted configuration keeps floors clear and maximizes usable space
Smooth push pull rotation for precise load positioning
Wide range of capacities from 250 lb up to 10,000 lb
Multiple span options for tailored coverage and reach
Compatible with manual or powered hoists and trolleys
Meets industry standards including OSHA and ANSI requirements

Applications

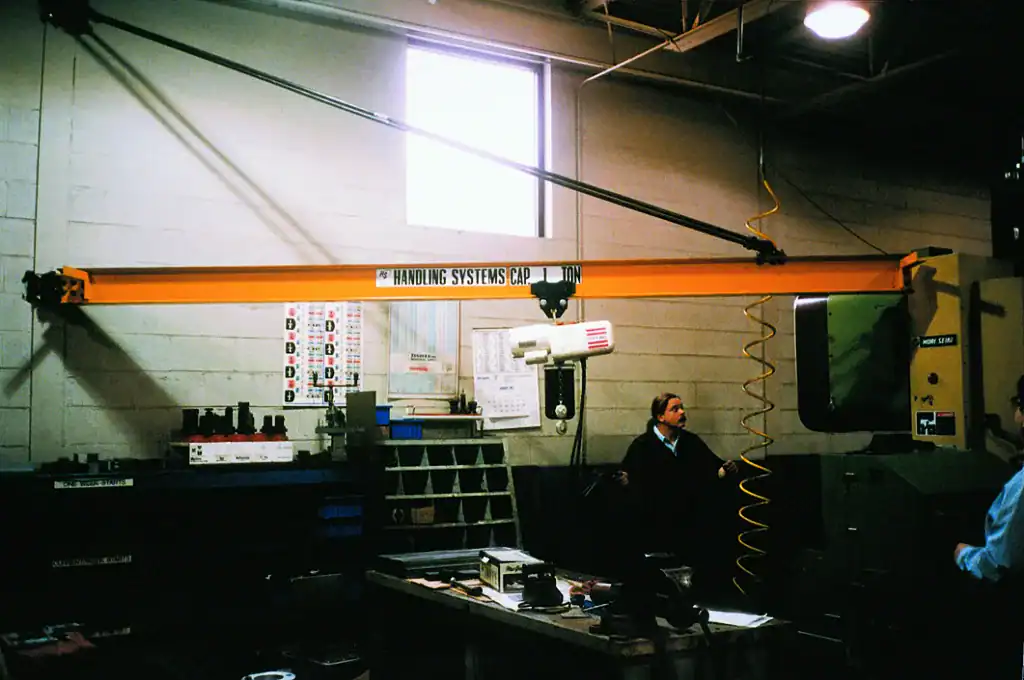

The 311 Series wall mounted jib crane is ideal for targeted lifting where overhead cranes are unnecessary or unavailable.

Common applications include:

Manufacturing workstations
Assembly and fabrication areas
Maintenance and repair operations
Loading and unloading parts or equipment
Warehouses and material handling zones
Supplementary lifting under overhead crane systems

This wall mounted jib crane improves operator productivity while reducing manual handling strain.

Selection Assistance

Choosing the correct 311 Series jib crane depends on several key factors.

When selecting your crane consider:

Required lifting capacity
Span length needed to service the work area
Wall or column mounting location and structural support
Available headroom for hoist and trolley operation
Frequency of use and duty cycle

Barron Equipment can help evaluate your application and recommend the proper wall mounted jib crane configuration to ensure safe reliable performance.

Product Specification

Span	10 Foot, 11 Foot, 12 Foot, 13 Foot, 14 Foot, 15 Foot, 16 Foot, 17 Foot, 18 Foot, 19 Foot, 20 Foot, 21 Foot, 22 Foot, 23 Foot, 24 Foot, 25 Foot, 26 Foot, 27 Foot, 28 Foot, 29 Foot, 30 Foot, 8 Foot, 9 Foot
Weight Capacity	2000 lbs, 3000 Lbs, 4000 Lbs, 500 Lbs, 6000 lbs, 250 lbs, 1000 lbs, 1500 lbs, 8000 lbs, 10000 lbs

FAQs

What is a 311 Series wall mounted jib crane?

The 311 Series wall mounted jib crane is a tie rod style jib crane designed for wall or column mounting. It provides reliable localized lifting for workstations assembly areas and material handling zones without taking up floor space.

What weight capacities are available with the 311 Series?

311 Series jib cranes are available in capacities ranging from 250 lbs to 10,000 lbs. The wide capacity range makes them suitable for light duty workstation lifting through heavy industrial applications.

Where are wall mounted jib cranes commonly used?

Wall mounted jib cranes are commonly used in manufacturing facilities maintenance areas warehouses machine shops and loading stations. They are ideal for areas where floor mounted cranes are not practical.

What is the benefit of a tie rod jib crane design?

The tie rod design provides added structural support which reduces deflection and improves load stability. This allows the 311 Series jib crane to handle heavier loads efficiently while maintaining smooth manual rotation.

Can the 311 Series be mounted to a wall or a column?

Yes. The 311 Series jib crane can be mounted to either a building wall or a structural column depending on your facility layout and structural support requirements.

Does a wall mounted jib crane rotate fully?

The 311 Series wall mounted jib crane typically offers up to 180 degrees of rotation depending on mounting conditions. This provides efficient load coverage while keeping the crane close to the work area.

What span options are available for the 311 Series?

Multiple span lengths are available to meet different workspace layouts. Choosing the correct span ensures adequate coverage without interfering with nearby equipment or structures.

What types of hoists and trolleys work with the 311 Series?

The 311 Series jib crane is compatible with manual and powered hoists and trolleys. Selection depends on capacity duty cycle and operational preferences.

How do I determine the right jib crane for my application?

Selecting the right wall mounted jib crane depends on required capacity span mounting location headroom and frequency of use. Barron Equipment can assist with proper crane selection to ensure safe and efficient operation.

Does the 311 Series meet safety and industry standards?

Yes. The 311 Series jib crane is designed to meet applicable OSHA and ANSI standards ensuring compliance safety and long term reliability in industrial environments.

Safety Information

The following safety information is provided by Handling Systems International, Inc. (HSI). Please read all warnings before installing or operating this equipment.

Inspect entire system annually or more frequently as defined by OSHA 1910.179. Inspection must be performed by a qualified person. Failure to do so may cause serious injury or death.
This equipment, used as a crane, is not in any way designed for lifting, supporting, or transporting humans. Failure to follow specified load limitations can result in serious bodily injury or death.
The rated load of the hoist as marked on the hoist must not exceed the rated capacity of the jib as labeled on the boom. Do not install a hoist with a capacity greater than that of the jib.
It is solely the customer’s responsibility to provide suitable mounting supports for the jib crane. HSI recommends that the customer consult a qualified professional architect or engineer in your local area to determine the adequacy of the building support. There should be no deviation from the recommended foundation size or installation recommendations without first consulting a qualified professional. Failure to check this item can result in serious bodily injury or death.
Do not impact end stops at speed. Only impact end stops with caution.
Never use end stops for repetitive boom impacts.
To prevent trolley from running off of the boom, do not operate crane without end stop bolt firmly secured in place on the end of the boom.
Do not operate hoist or crane if cotter pins are not in place and properly bent over on both sides of hoist trolley. Check regularly that the cotter pins are in place and securing the hoist on the hoist trolley.
Inspect jib for missing or broken parts before operating.
Do not adjust or disassemble crane when jib is under load.
When moving jib, position the load in the center of the boom.
Be certain the load is directly beneath boom before load is lifted. Do not pull sideways on crane.
Ensure the load is not attached to the floor and remove any obstacles that impede lifting.
Adjustments and/or repairs should be made in an area where it will have the least interference with operation.
Never stand under jib when disassembling crane.

Resources

View PDF (311_OwnersManual.pdf)

View PDF (311_Product_Specifications.pdf)
