| SKU | 60.62.50.APB.FCB | Brake Type | Face Contact Brake |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Weight Capacity | 1100 Lbs |
| Wheel Width | 2 Inches | Tread Style | Donut Tread - Apex |
| Overall Height | 7-1/2 Inches | Wheel Material | Polyurethane |
| Core Material | Aluminum | Bearing Type | Ball Bearing |
| Caster Type | Swivel | Mounting type | Top Plate |
| Top Plate | 4 Inches x 4-1/2 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 Inches | Fork Finish | Zinc Plated |
Overview

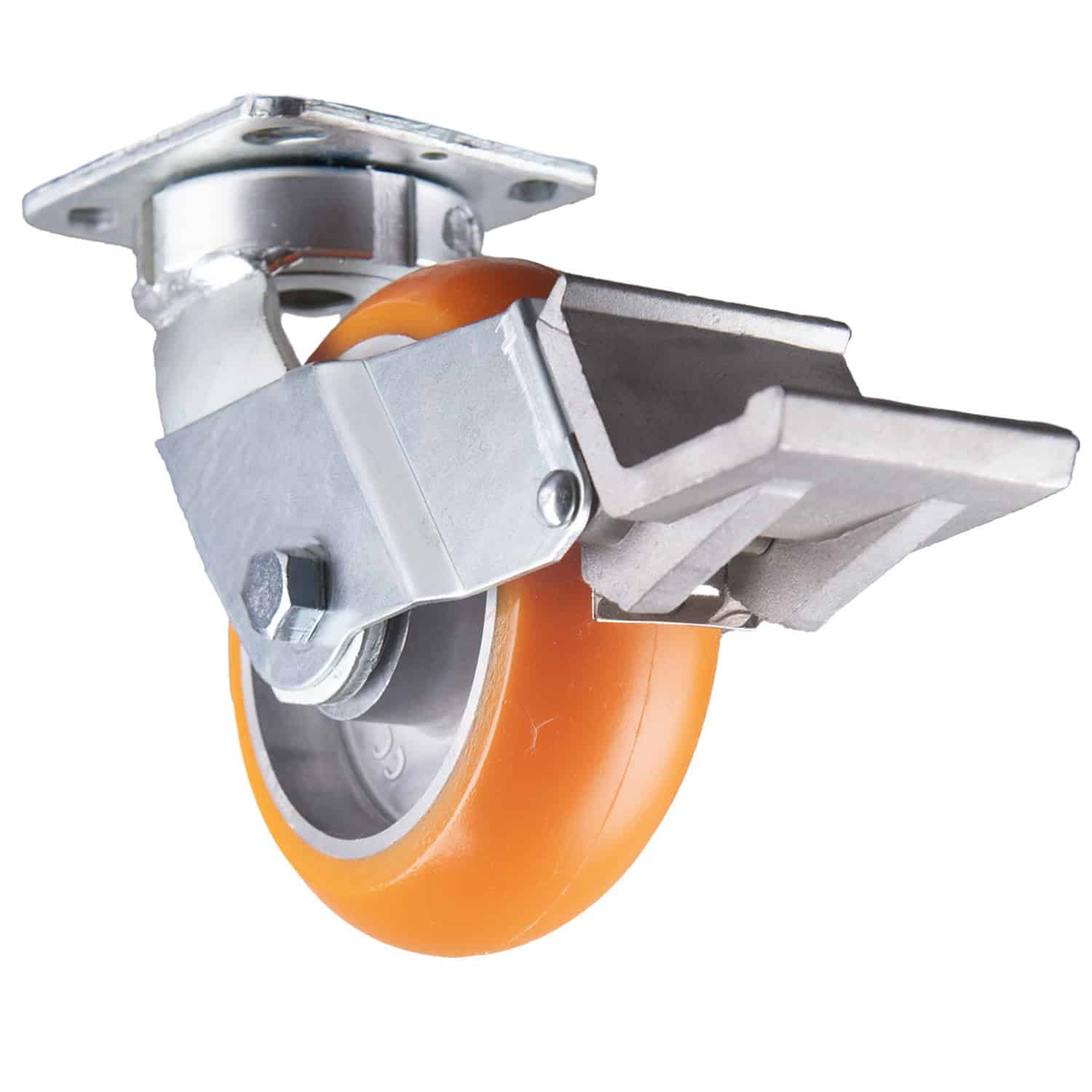

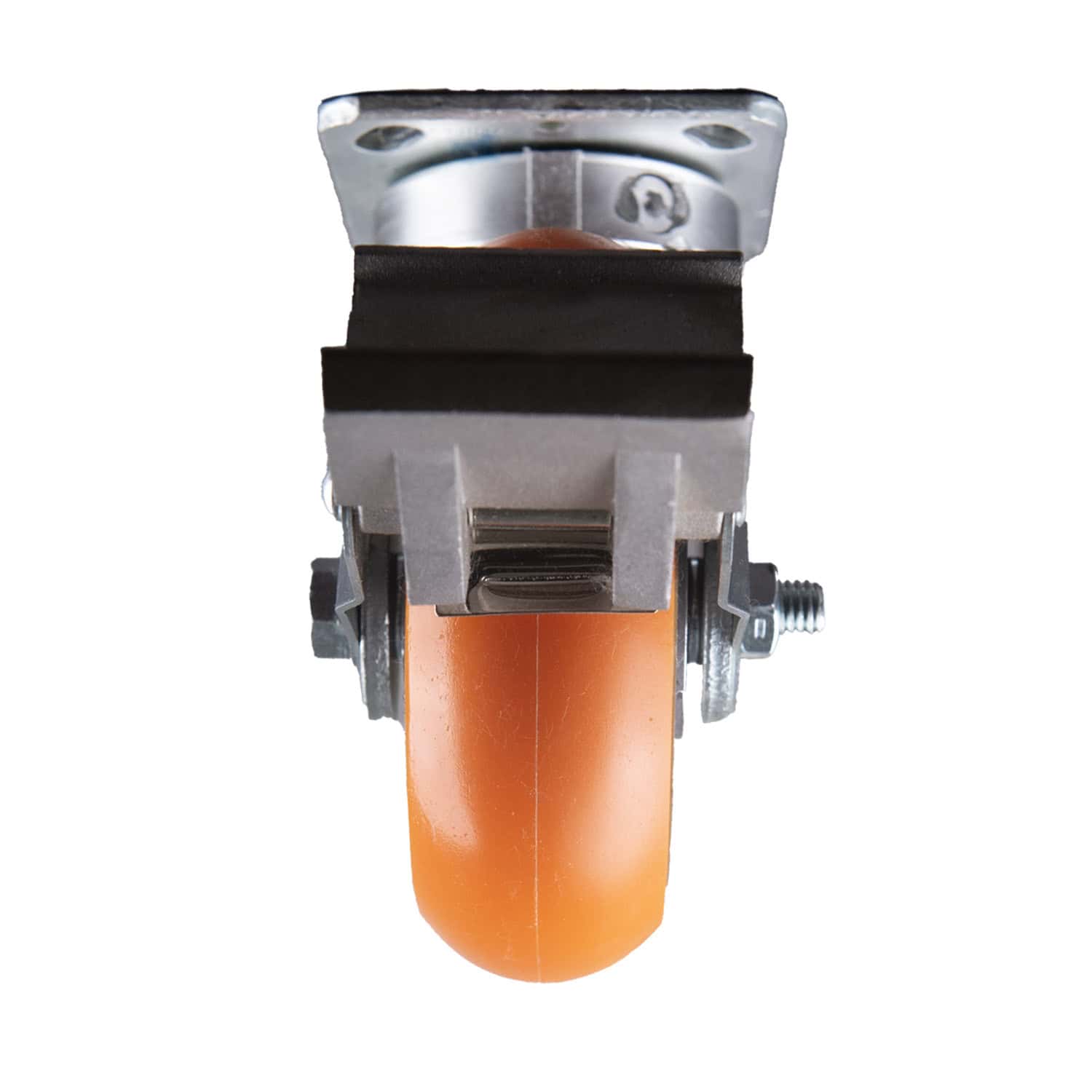

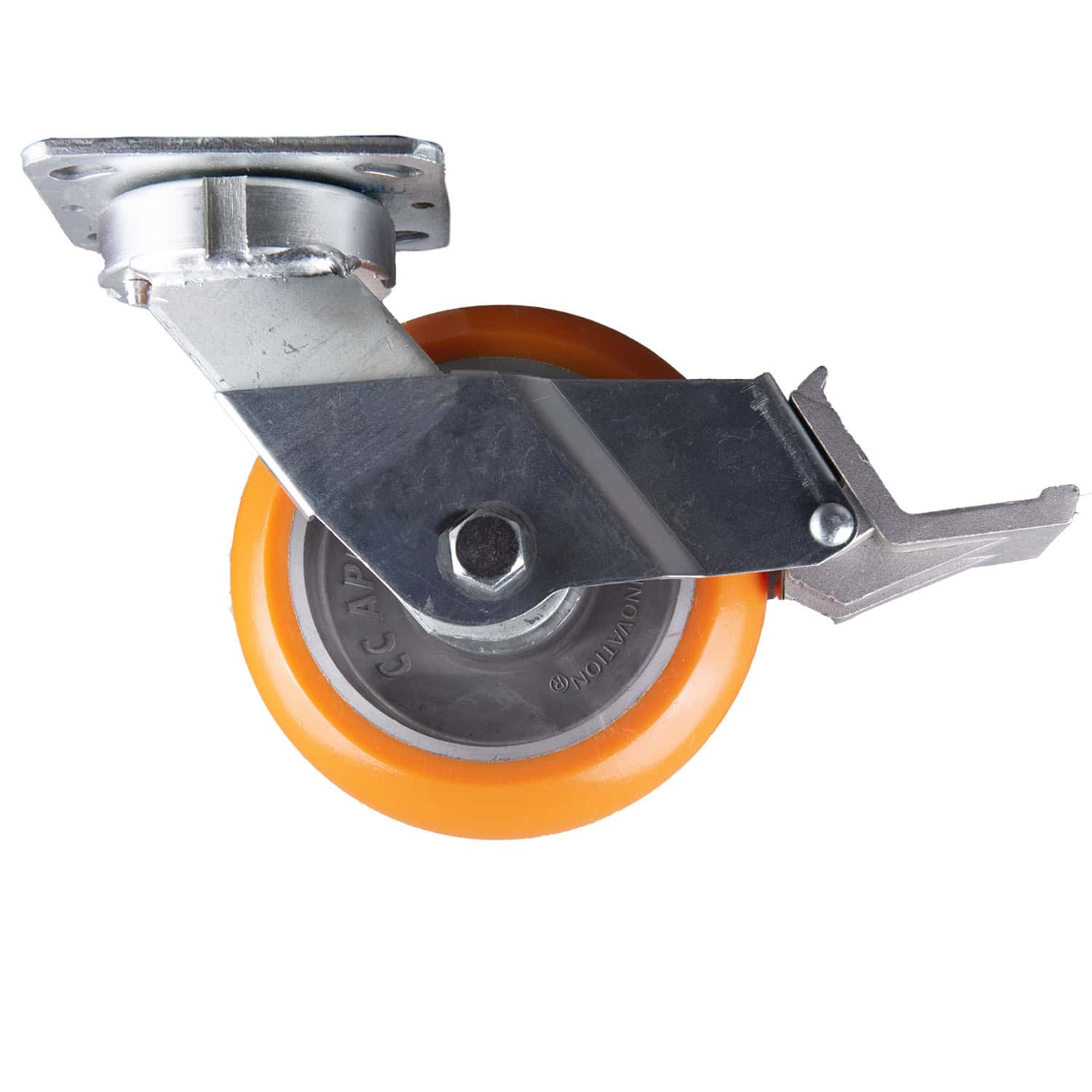

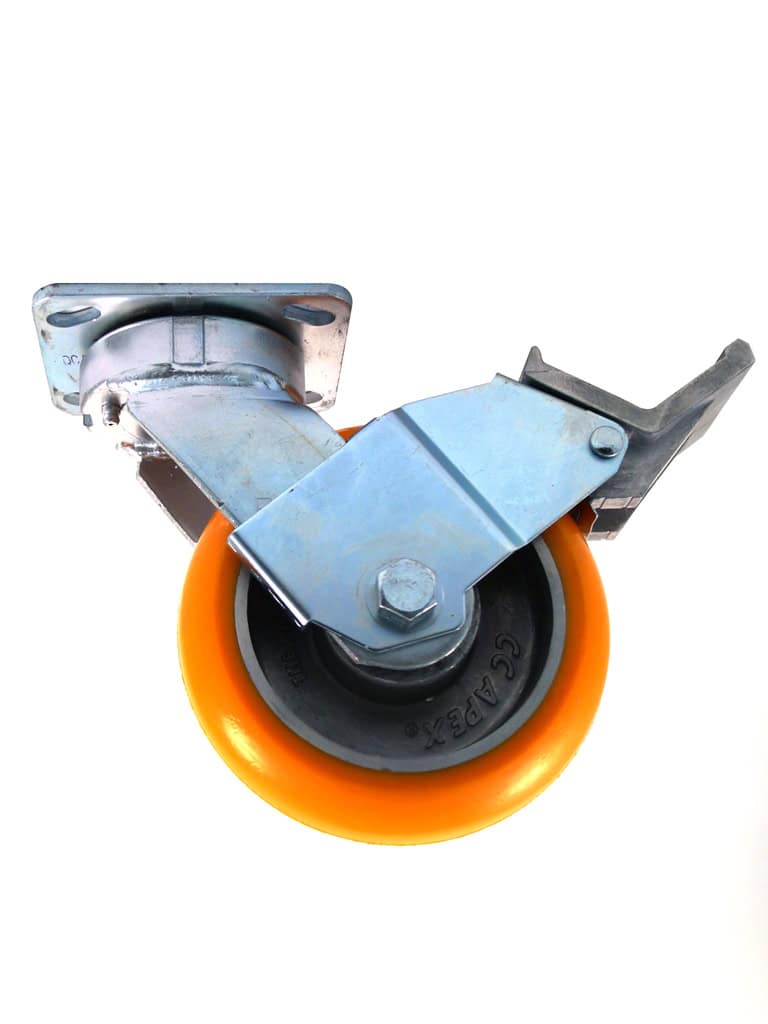

This kingpinless swivel caster has a polyurethane caster wheel with a diameter of 6 inches and is ideal for heavy duty industrial applications. This swivel caster has more benefits and better overall ergonomics than the standard industrial caster. The 60.62.50.APB.FCB features a face contact brake for added security and stability in your workplace. Ball bearings are sealed and pre-lubricated, providing better ergonomics and less maintenance.
Benefits
The main benefit of the kingpinless series casters is that they eliminate the use of the kingpin which allows for longer use, better ergonomics and more efficiency. In addition to benefits of the overall kingpinless caster category, polyurethane wheels have their own benefits, such as superior floor protection, longer service life, low rolling resistance, high dynamic load capacity and high tear resistance. Check out our blog about 5 reasons to get polyurethane wheels on your casters to learn more.
Applications
Applications for polyurethane kingpinless casters include industrial manufacturing, waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Due to the high load capacity, polyurethane caster wheels work great in Woodworking, Aerospace, Automotive and Food Processing industries. Click here to learn more about our polyurethane wheels.
This model comes equipped with a face contact brake ("FCB") for added safety and stability. The face contact brake provides secure locking when needed while maintaining the mobility benefits of a swivel caster. For more information about our caster braking options, check out our blog post about the variety of brakes we offer - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types.
If your business requires a heavy duty swivel caster solution, you will want to review our Heavy Duty Kingpinless Casters category. Learn more about the benefits of kingpinless swivel casters on our website.
