| SKU | 60.62.51.APB.FCB | 2D Drawing | 2 Drawing |
|---|---|---|---|
| Wheel Diameter | 6 Inches | Weight Capacity | 1000 Lbs |
| Wheel Width | 2 Inches | Tread Style | Donut Tread |
| Overall Height | 7-1/2 Inches | Wheel Material | Polyurethane |
| Core Material | Aluminum | Bearing Wheel | Ball Bearing |
| Caster Type | Swivel | Mounting type | Large Top Plate |
| Top Plate | 4-1/2 Inches x 6-1/4 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-7/16 Inches - 3-3/8 Inches x 4-15/16 Inches - 5-1/4 Inches | Fork Finish | Zinc Plated |

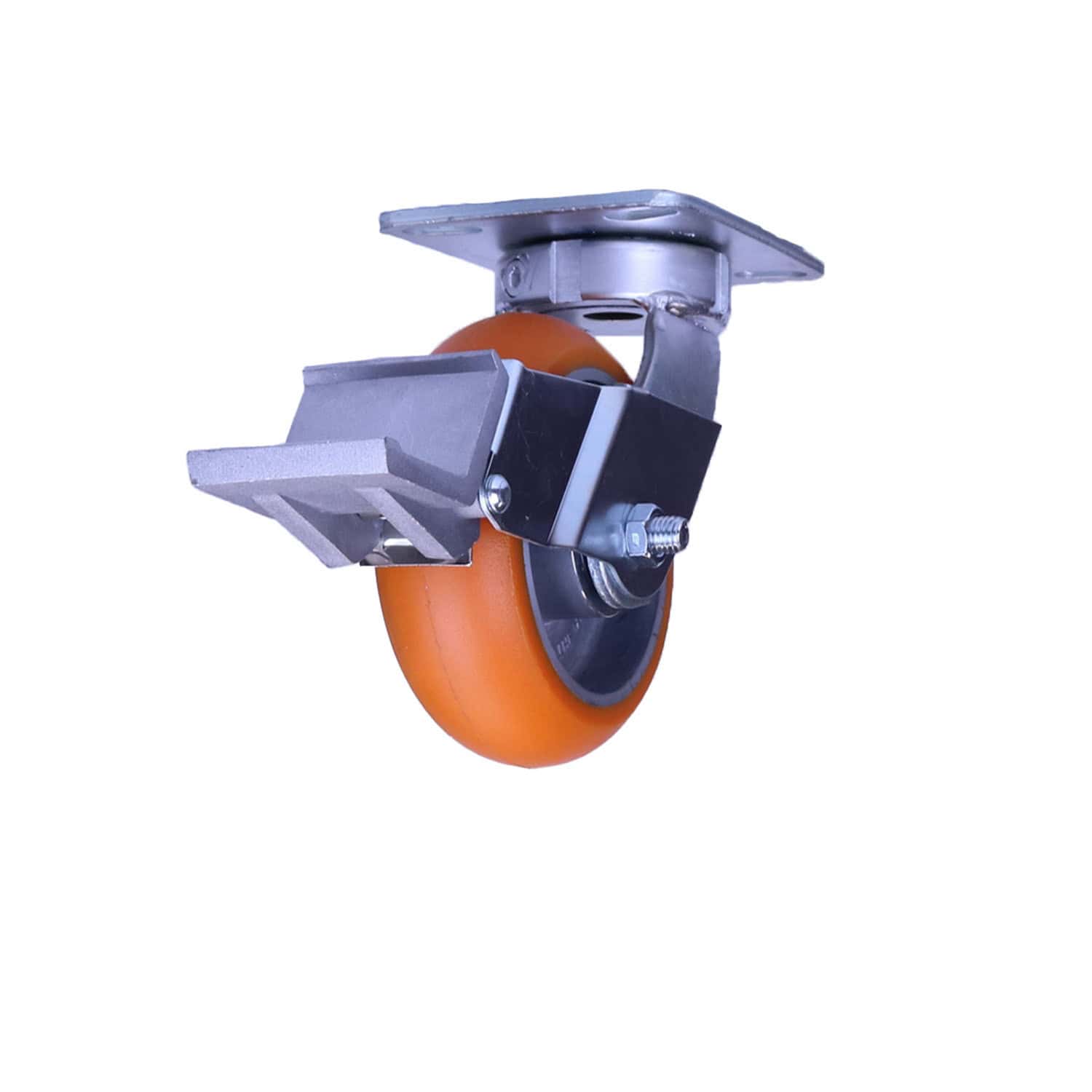

6 Inch Kingpinless Swivel Caster with Polyurethane Wheel – Large Top Plate – Face Contact Brake
Moldon Polyurethane Wheel
Donut Tread
Aluminum Core
Ball Bearing
1000 lbs Capacity
Overall Height 7-1/2in
Overall Top Plate 4-1/2in x 6-1/4in
Bolt Hole 2-7/16in – 3-3/8in x 4-15/16in – 5-1/4in
Face Contact Brake
Original price was: $157.36.$133.76Current price is: $133.76.
Product Specification
| Wheel Diameter | |
|---|---|
| Caster Type | |
| Wheel Material | |
| Top Plate Dimensions | |
| Wheel Brakes | |
| Weight Capacity | |
| Application | |
| Bearing Type | Ball Bearing |
| Overall Height | 7-1/2in |
