| SKU | 60.52.50.APB.FCB | 2D Drawing | 2D Drawing |
|---|---|---|---|
| Wheel Diameter | 5 Inches | Weight Capacity | 750 Lbs |
| Wheel Width | 2 Inches | Tread Style | Radius Tread |
| Overall Height | 6-1/2 Inches | Wheel Material | Polyurethane |
| Core Material | Aluminum | Bearing Type | Ball Bearing |
| Caster Type | Swivel | Mounting Type | Top Plate |
| Top Plate | 4 Inches x 4-1/2 Inches | Axle Type | Solid Axle |
| Top Plate Holes | 2-5/8 Inches - 3 Inches x 3 Inches - 3-5/8 Inches | Fork Finish | Zinc Plated |
Overview

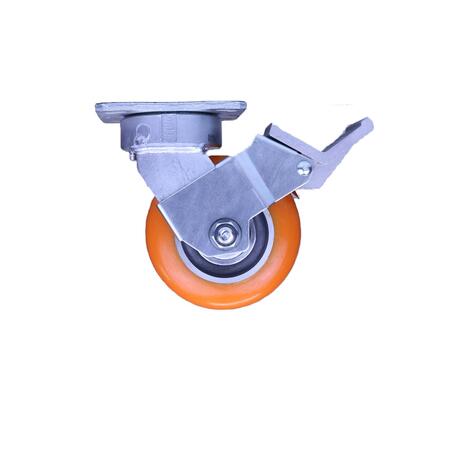

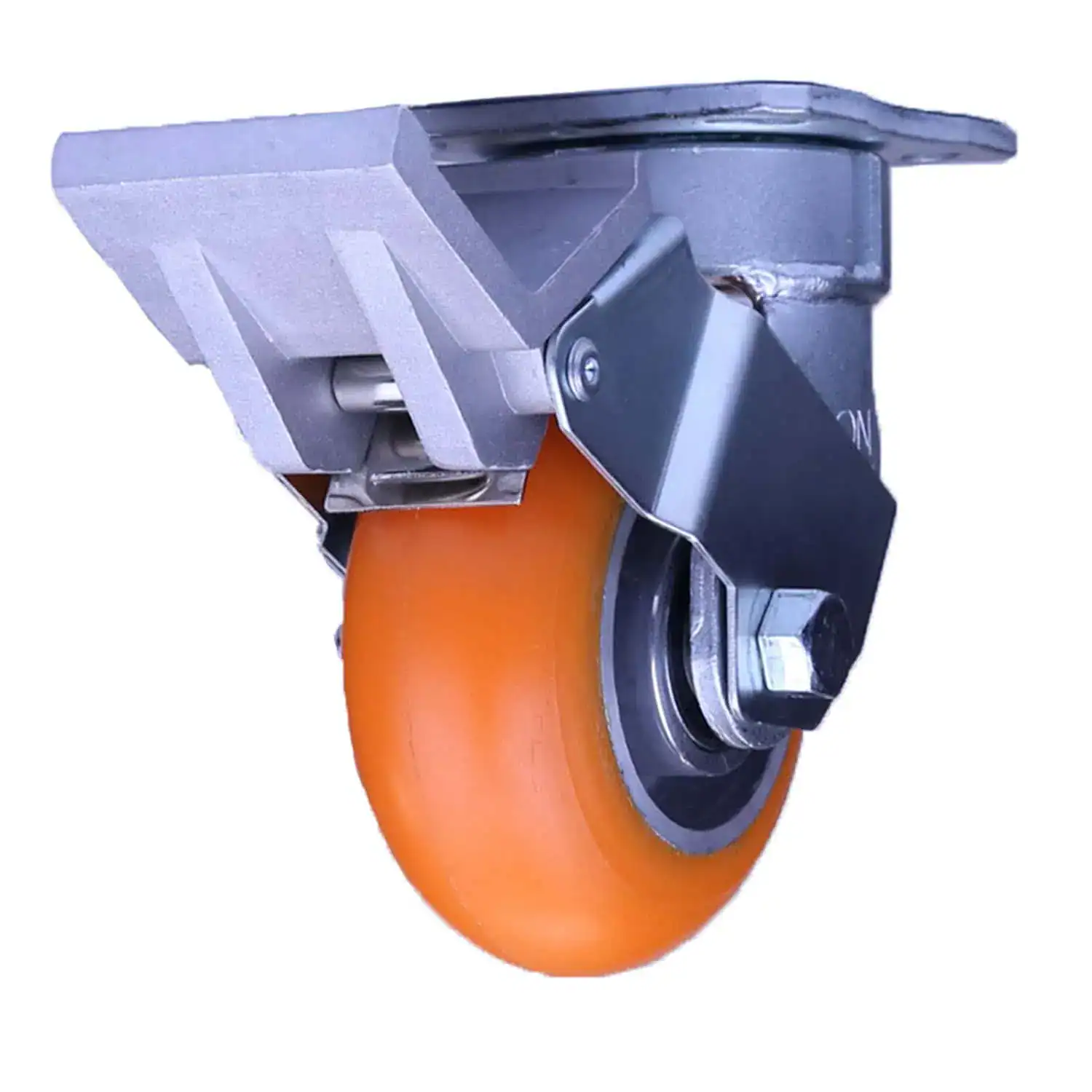

This kingpinless swivel caster has a polyurethane caster wheel with a diameter of 5 inches (as indicated by the "52" in the SKU) and is ideal for heavy duty industrial applications. This swivel caster features a face contact brake (FCB) for secure locking when needed. It delivers better overall ergonomics than standard industrial casters, making it perfect for applications where both mobility and secure positioning are required.
Benefits
The main benefit of the kingpinless series casters is that they eliminate the use of the kingpin which allows for longer use, better ergonomics and more efficiency. In addition to benefits of the overall kingpinless caster category, polyurethane wheels have their own benefits, such as superior floor protection, longer service life, low rolling resistance, high dynamic load capacity and high tear resistance. Click here to learn more about our polyurethane wheels.
The face contact brake provides reliable stopping power when engaged, preventing unwanted movement of your equipment. Learn more about the advantages of kingpinless swivel casters and how they can improve your material handling operations.
Read our case study on Kinpinless Casters to see how a solar car club at Iowa State University utilized Barron casters to streamline their processes.
Applications
Applications for polyurethane kingpinless casters include industrial manufacturing, waste bins, platform trucks, job boxes in bakeries and woodworking facilities. Due to the high load capacity, polyurethane caster wheels work great in Woodworking, Aerospace, Automotive and Food Processing industries. The face contact brake makes this model particularly suitable for applications on inclines or where equipment must remain stationary during operation. Discover the 5 reasons to get polyurethane wheels on your casters for your heavy-duty applications.
For more information about our caster braking options, check out our blog post about the variety of brakes we offer - Braking Ground: A Comprehensive Guide to Diverse Industrial Caster Brake Types.
Selection Assistance
Not sure which caster would work best for your application? Check out this blog post to learn how to select the best caster for your application. For further assistance, we have a whole team of caster experts dedicated to find the perfect caster for your business that can help improve ergonomics and save your company money. Fill out the form below and a Barron caster representative will be in touch soon!
