Overview

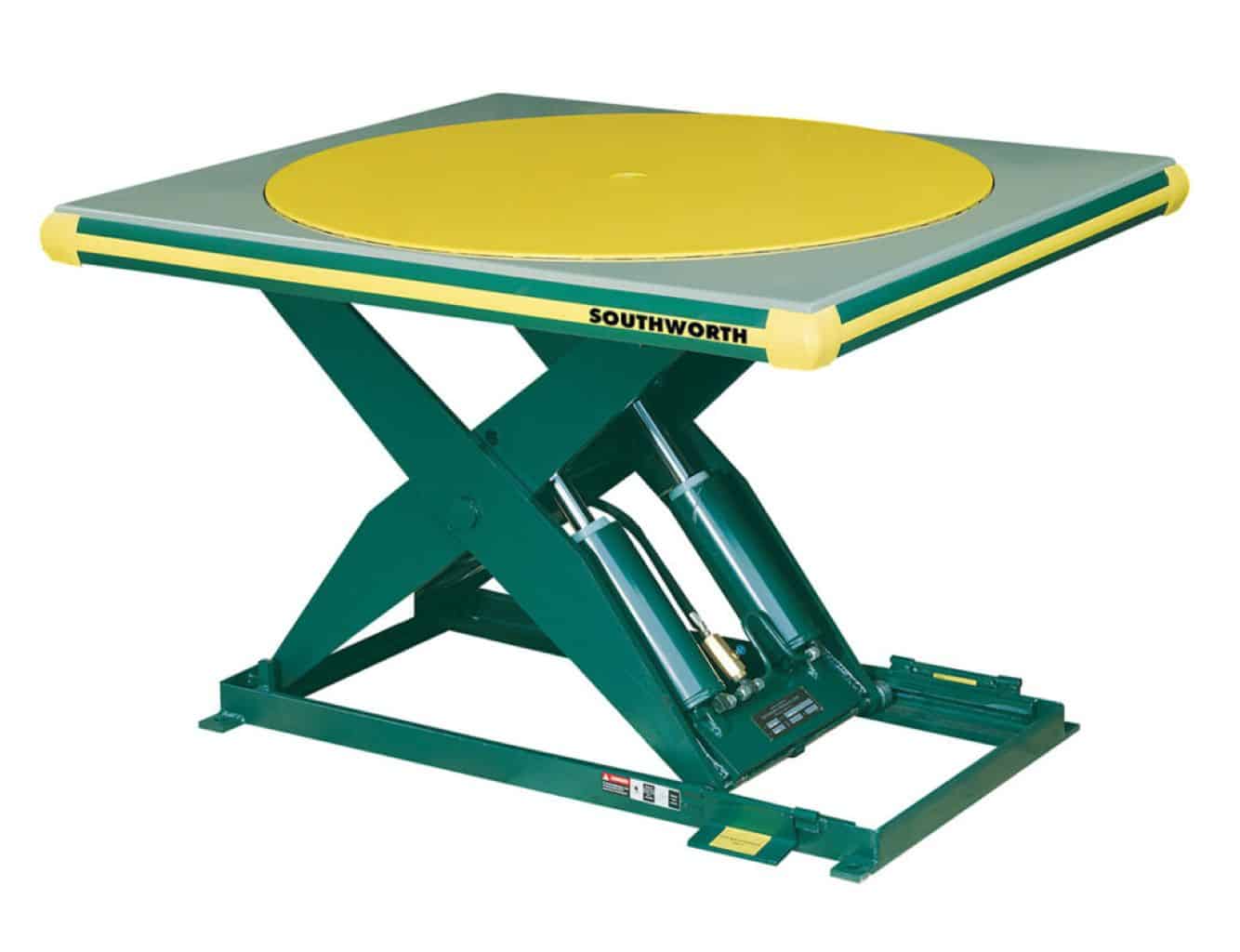

This turntable lift table combines hydraulic scissor lifting with a flush-mounted, 360-degree rotating platform. Rated at 3,500 lbs with a 48 in. x 48 in. surface, it raises and rotates heavy loads so operators can access all sides without walking around or reaching across the material. The hydraulic power unit provides smooth, controlled lifting while the integrated turntable allows free rotation at any height.
By combining vertical lift and rotation into a single piece of equipment, this industrial turntable eliminates the need for separate positioning tools. Workers can raise a load to the right height, then spin it to reach the side they need — all from one standing position. This improves speed, reduces strain, and supports better ergonomics in facilities where operators interact with multiple sides of a load throughout the day.
Benefits
The flush-mounted turntable sits level with the platform surface, creating a smooth, unobstructed work area. There are no raised edges or gaps to catch on loads during rotation, which makes it safer and easier to position materials. The 360-degree rotation gives operators complete access to every side of a pallet, assembly, or workpiece without the need to reposition themselves or the load.
Underneath the turntable, this lift table shares the same heavy duty construction found across the LS Series. Heavy-duty torque tubes minimize platform deflection under load. Contoured scissor legs provide strength at each pivot point while maintaining a low collapsed height for ground-level loading. Pressure-compensated flow control allows adjustable lowering speed, and built-in maintenance props, lubricated-for-life bushings, and a tell-tale hydraulic return line support long-term reliability with minimal service requirements.
| Model Number | Load Capacity (lbs.) | Raised Height (in.) | Lowered Height (in.) | Standard Platform Size (in.) | Link to Page |
|---|---|---|---|---|---|
| LS2-24 | 2000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS4-24 | 4000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS2-36 | 2000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36 | 4000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36WFMTT | 3500 | 43.25 | 7.25 | 36 x 48 | Link |
| LS2-48 | 2000 | 55.25 | 7.25 | 24 x 64 | Link |
Applications
This turntable lift table is ideal for work environments where operators need to access multiple sides of a load during assembly, inspection, wrapping, or packing. Common applications include pallet wrapping stations, quality inspection areas, welding and fabrication cells, and assembly lines where workers build or finish products on all sides. The ability to raise and rotate in one step significantly reduces the time spent repositioning materials.
The 48 in. x 48 in. platform handles standard pallets and a wide range of industrial assemblies. With a 3,500 lb capacity, it supports loaded pallets, fixtures, and heavy components that require full-perimeter access. Shipping and receiving teams also use turntable lift tables to streamline stretch wrapping and banding operations, turning loads in place rather than walking around them.
Maintenance
This lift table is designed for low maintenance and long service life. Routine checks include inspecting the scissor arms, hydraulic connections, and industrial turntable rotation. Sealed components help reduce service needs, while easy‑access grease points make lubrication quick and simple.
Keeping the platform clean and confirming smooth turntable operation helps maintain consistent performance. A basic maintenance schedule prevents unexpected downtime and supports long‑term reliability in busy work environments.
Selection Assistance
If your workflow requires operators to access more than one side of a load during processing, a turntable lift table can reduce reaching, walking, and repositioning time. The flush-mounted design on this model keeps the work surface level and unobstructed, making it well suited for loads that need to slide on and off the turntable smoothly.
Consider your load dimensions, weight, and how often rotation is needed when deciding between a standard scissor lift table and a turntable model. If you only need vertical lifting, a standard hydraulic lift table may be more cost-effective. If rotation is a regular part of your process, this model can deliver meaningful gains in productivity and ergonomics. Barron Equipment can help you evaluate both options. Fill out the form below and a product specialist will reach out to assist you.
