Overview

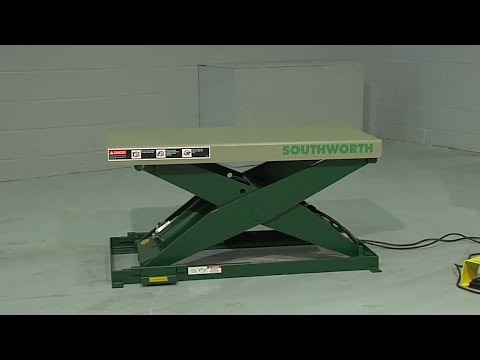

This extended-platform hydraulic scissor lift table provides 2,000 lbs of capacity with 48 in. of vertical travel, raising loads from 7.25 in. to 55.25 in. The 24 in. x 64 in. platform gives operators significantly more surface area for handling long, bulky, or oversized materials that smaller lift tables cannot accommodate. Its hydraulic power unit delivers smooth, controlled lifting that supports both speed and precision.
Engineered for heavy duty industrial use, this scissor lift table helps workers raise materials to the right height without straining their backs. The extended travel range makes it particularly effective in applications where loads need to reach waist height or higher, reducing bending and repetitive lifting throughout the shift.
Benefits
The extended platform on this hydraulic lift table eliminates the challenge of working with long materials on a standard-sized surface. Sheet goods, panels, tubing, and full-length pallets all fit securely on the 64 in. platform, keeping loads centered and stable during lifting and positioning.

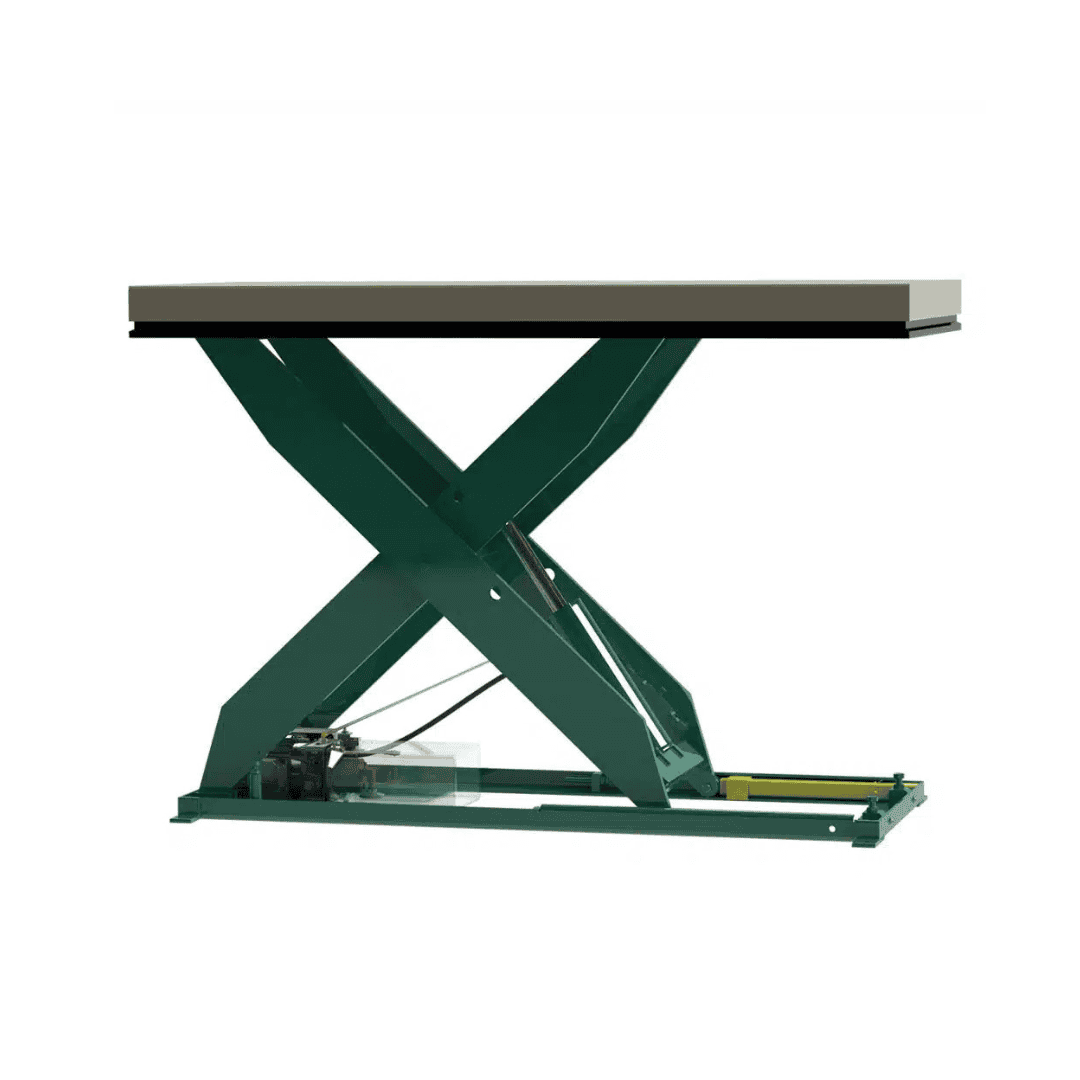

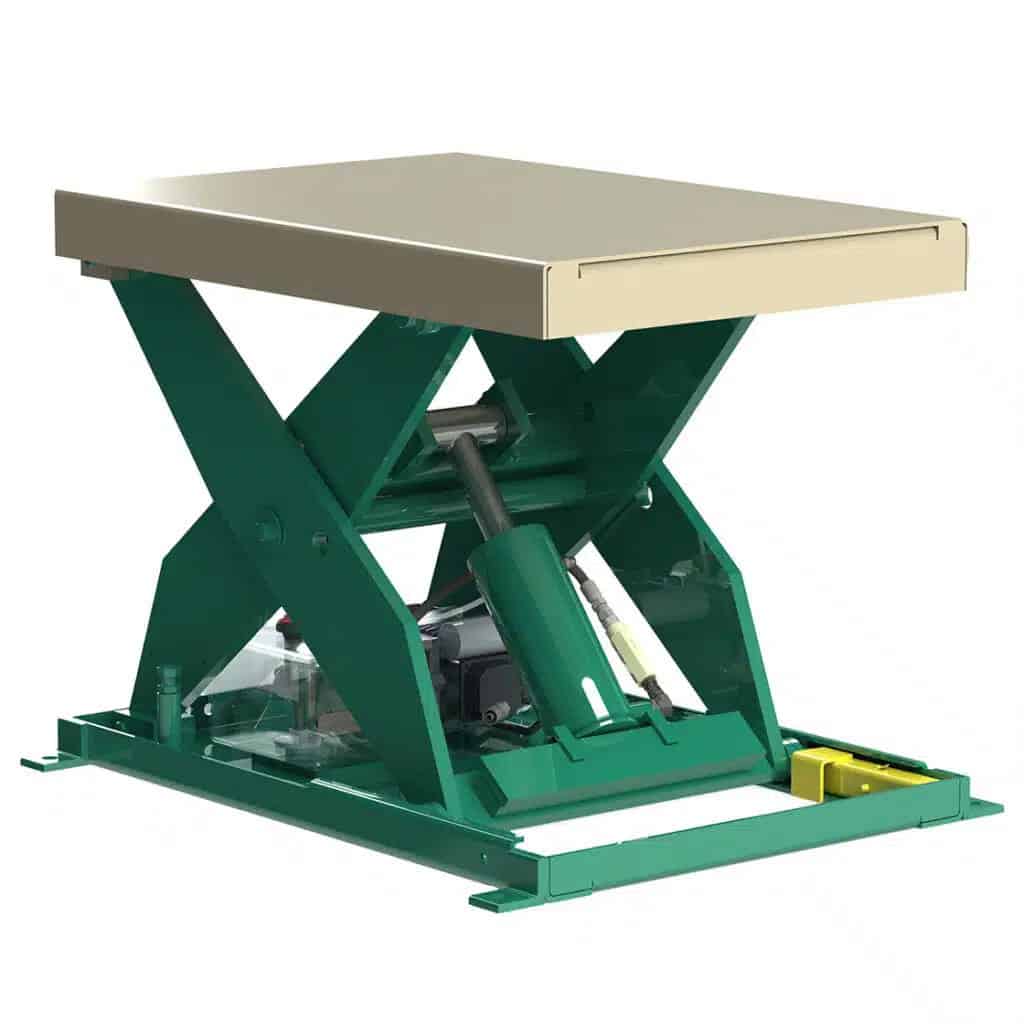

Heavy-duty torque tubes minimize platform twisting and deflection even under full load. Contoured scissor legs offer added strength at the pivot points while maintaining a ground-level lowered height of 7.25 in. for easy loading. The power unit raises the platform to its full height in approximately 9 seconds, and pressure-compensated flow control provides adjustable lowering speed for precise work positioning. Built-in maintenance props, lubricated-for-life bushings, and a tell-tale hydraulic return line keep service requirements low and uptime high.
| Model Number | Load Capacity (lbs.) | Raised Height (in.) | Lowered Height (in.) | Standard Platform Size (in.) | Link to Page |
|---|---|---|---|---|---|
| LS2-24 | 2000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS4-24 | 4000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS2-36 | 2000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36 | 4000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36WFMTT | 3500 | 43.25 | 7.25 | 36 x 48 | Link |
| LS2-48 | 2000 | 55.25 | 7.25 | 24 x 64 | Link |
Applications
This lift table is especially well suited for facilities that handle long or irregularly shaped materials. Common applications include feeding sheet metal into fabrication equipment, positioning lumber and panels for cutting, and raising oversized pallets in shipping and receiving areas. Production lines, welding shops, and woodworking facilities all benefit from the added platform length and extended lifting height this model provides.

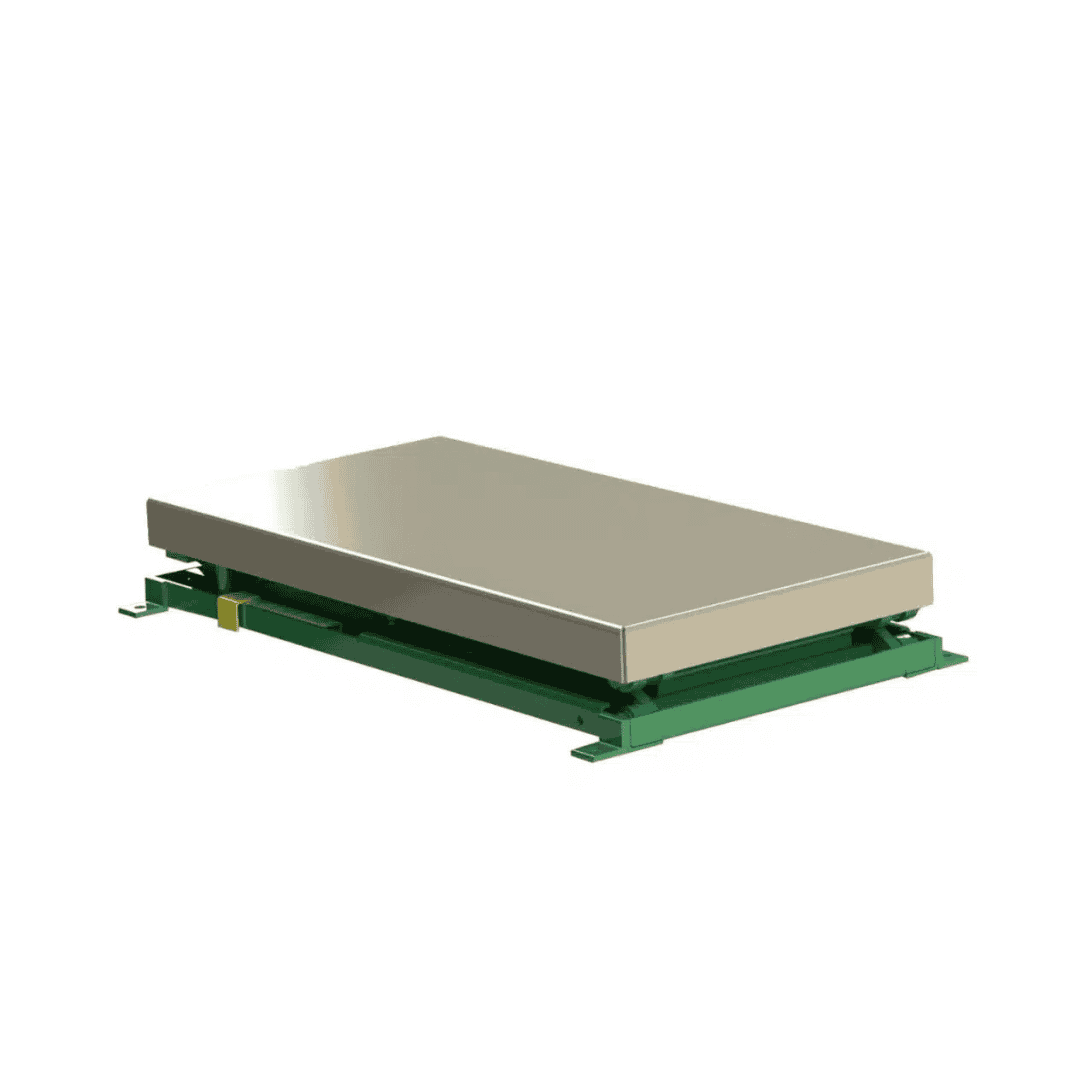

Because the platform sits at just 7.25 in. when lowered, operators can roll pallets on and off with pallet jacks and hand trucks at ground level. The 55.25 in. raised height positions materials at a comfortable working range for most standing tasks, supporting better ergonomics and faster throughput across a wide range of industrial workflows.
Maintenance
This scissor lift table is engineered for low‑maintenance operation. It includes sealed bearings that require minimal lubrication and easily accessible grease points for quick servicing. Simple routine checks—like inspecting hydraulic lines, scissor components, and platform surfaces—help keep the table operating smoothly.
By following a basic maintenance schedule, you extend the equipment's lifespan and reduce unexpected downtime. Because the lift is built for heavy duty industrial use, these routine steps help preserve lifting strength and stability even under continuous operation.
Selection Assistance
When selecting a scissor lift table for oversized materials, platform length and lifting height are two of the most important factors. This model's 24 in. x 64 in. platform handles loads that exceed standard table dimensions, while the 48 in. of vertical travel provides the wide range of height adjustment many operations require.
Keep in mind that this model's standard power is 460/3/60 (three-phase), so your facility will need a compatible electrical supply. If your application calls for single-phase power, alternative configurations are available. Additional options include conveyor tops, turntables, fork pockets, bellows skirting, and pit mounting. Barron Equipment can help match the right setup to your process. Fill out the form below and a product specialist will reach out to assist you.
