Overview
This hydraulic scissor lift table packs 4,000 lbs of lifting capacity into a compact 24 in. x 36 in. platform. With 24 in. of vertical travel raising loads from 7.25 in. to 31.25 in., it brings heavy materials to a comfortable working height without taking up the floor space a larger model would require. The hydraulic power unit provides smooth, controlled lifting that supports safe and efficient positioning throughout the workday.
For facilities that handle heavy loads in tight quarters, this lift table fills a gap that larger platforms cannot. Die carts, loaded bins, heavy fixtures, and dense components all fit on the compact surface, and the 4,000 lb capacity means workers are not forced to choose between strength and footprint. This heavy duty scissor lift table is built for repeated daily use in fast-paced industrial environments.
Benefits
The primary advantage of this model is the combination of high capacity and small size. At 4,000 lbs on a 24 in. x 36 in. platform, it delivers the same lifting power as larger models while fitting into workstations, production cells, and maintenance areas where space is limited. Workers can position heavy items at the right height without bending, straining, or relying on overhead equipment for routine tasks.

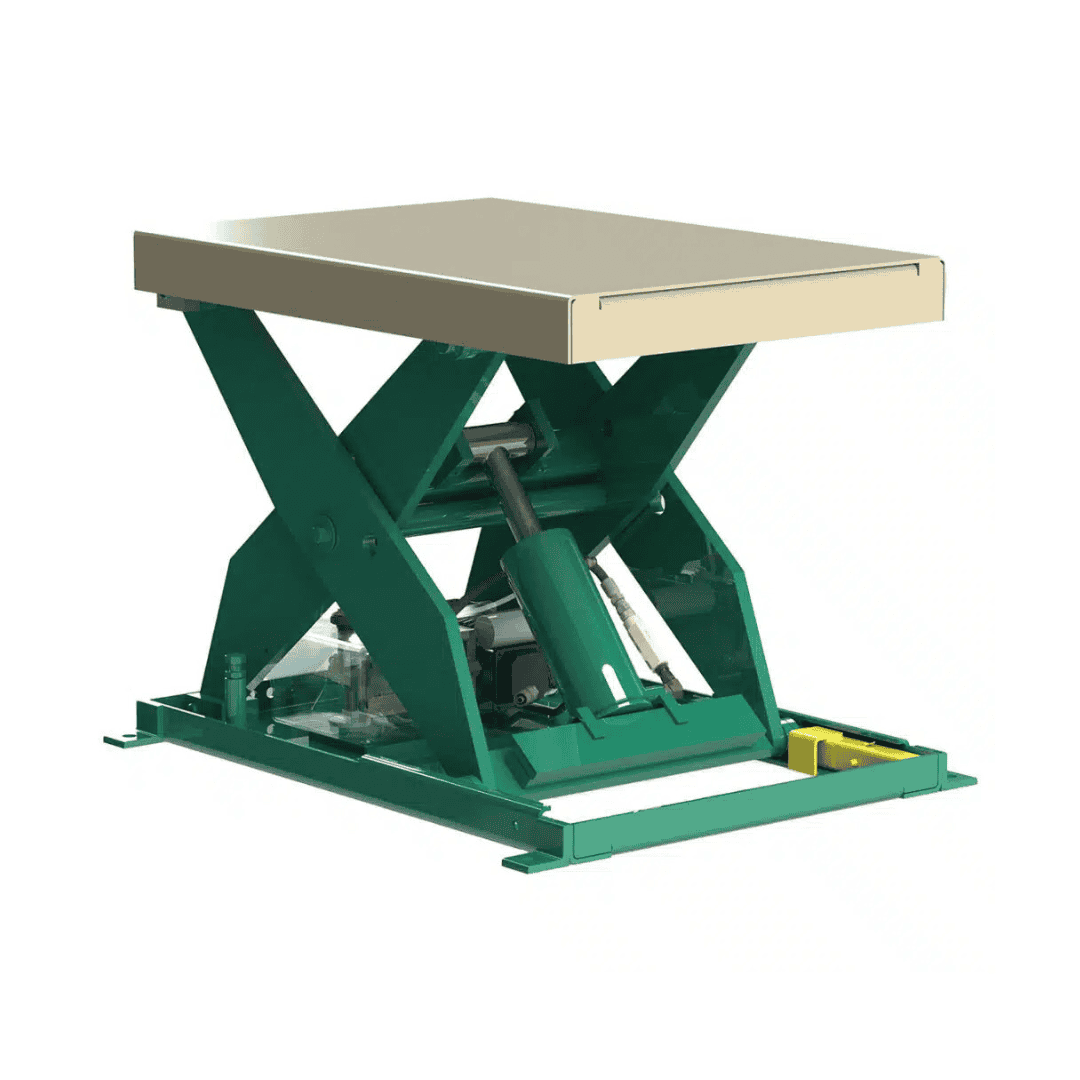

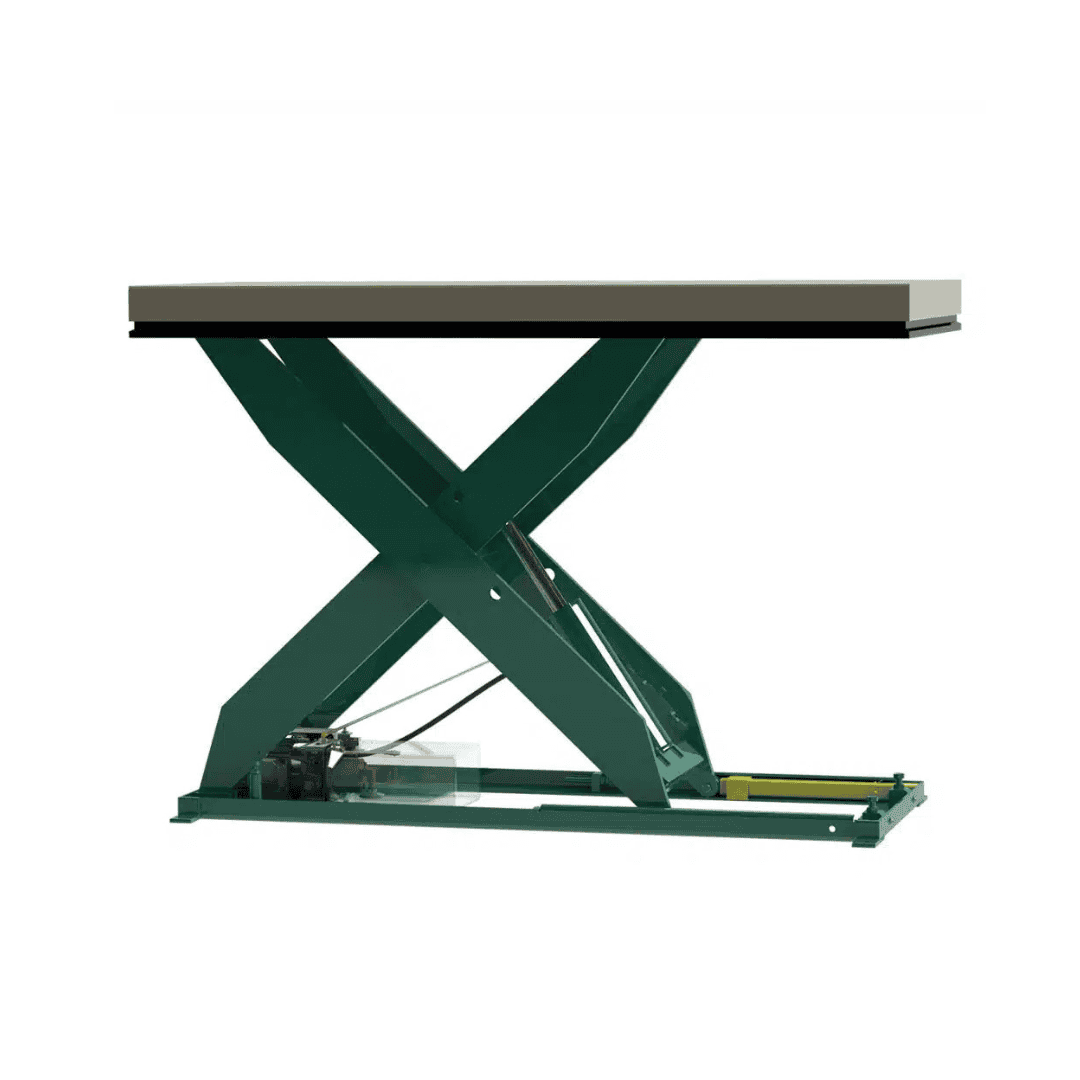

Heavy-duty torque tubes keep the platform rigid and stable under full load. Contoured scissor legs provide strength at each pivot point while maintaining a ground-level collapsed height of 7.25 in. for easy loading from pallet jacks and hand trucks. Pressure-compensated flow control gives operators adjustable lowering speed for precise positioning. Built-in maintenance props, lubricated-for-life bushings, and a tell-tale hydraulic return line support long service life with minimal upkeep.
| Model Number | Load Capacity (lbs.) | Raised Height (in.) | Lowered Height (in.) | Standard Platform Size (in.) | Link to Page |
|---|---|---|---|---|---|
| LS2-24 | 2000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS4-24 | 4000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS2-36 | 2000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36 | 4000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36WFMTT | 3500 | 43.25 | 7.25 | 36 x 48 | Link |
| LS2-48 | 2000 | 55.25 | 7.25 | 24 x 64 | Link |
Applications
This compact, high-capacity scissor lift table is well suited for environments where heavy loads meet limited floor space. Common applications include die loading and storage in stamping facilities, dense component handling in machining cells, heavy parts positioning on assembly lines, and equipment maintenance in repair bays. Tool and die shops, metalworking facilities, and compact production lines all benefit from having heavy duty lifting capacity in a smaller footprint.

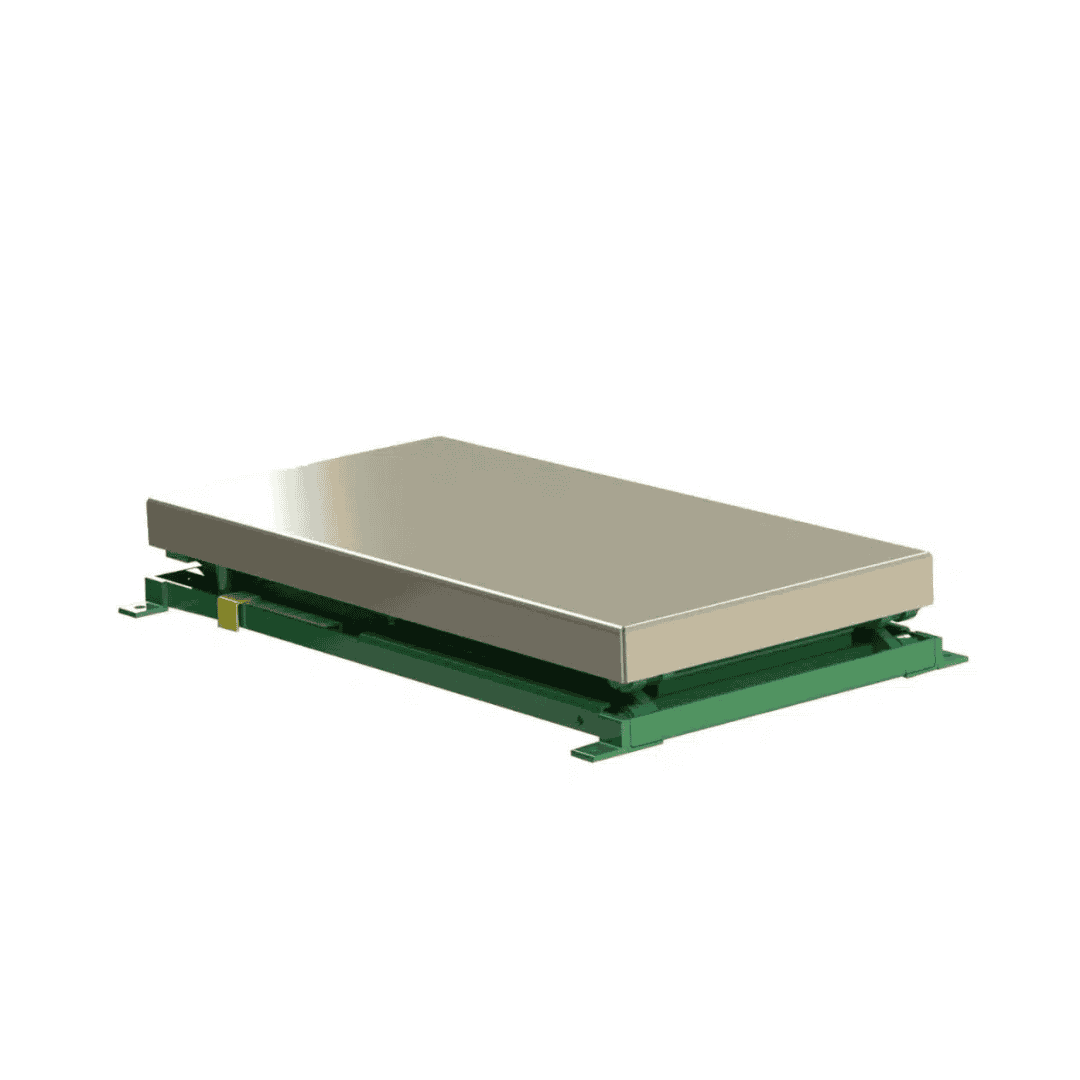

The 7.25 in. lowered height allows ground-level loading, making it easy to roll heavy items on and off with a pallet jack or hand truck. The 31.25 in. raised height positions loads at a practical working level for seated or short-standing tasks. For operations that need more platform area or taller lifting at the same 4,000 lb capacity, the LS4-36 offers a 24 in. x 48 in. platform with 43.25 in. of raised height.
Maintenance
This scissor lift table is built for minimal upkeep, making it ideal for busy environments. The design includes sealed bearings and accessible grease points, which reduce the amount of daily service required. Simple inspections—checking hydraulic hoses, the scissor arms, and the platform surface—help maintain long‑term performance.
Because the lift operates close to ground level, it stays stable and easy to access for cleaning and inspections. Following routine maintenance steps keeps the lift in strong working condition, reduces unexpected downtime, and helps the equipment last for many years. These low‑maintenance benefits are especially helpful for operations teams that focus on reliability and consistency.
A regular maintenance schedule also helps prevent small issues from becoming major repairs. This saves time, reduces costs, and keeps the lift ready for use whenever it's needed.
Selection Assistance
If your loads regularly exceed 2,000 lbs but your workspace cannot accommodate a larger platform, this model is the right fit. The 24 in. x 36 in. surface handles compact, heavy items without wasting floor space. For lighter loads on the same platform size, the LS2-24 provides a 2,000 lb option at a lower price point.
Before ordering, confirm your facility's electrical supply — verify the correct voltage for this configuration. Additional options include conveyor tops, fork pockets, bellows skirting, and pit mounting. Barron Equipment can help you determine the best model and configuration for your application. Fill out the form below and a product specialist will reach out to assist you.
