Overview

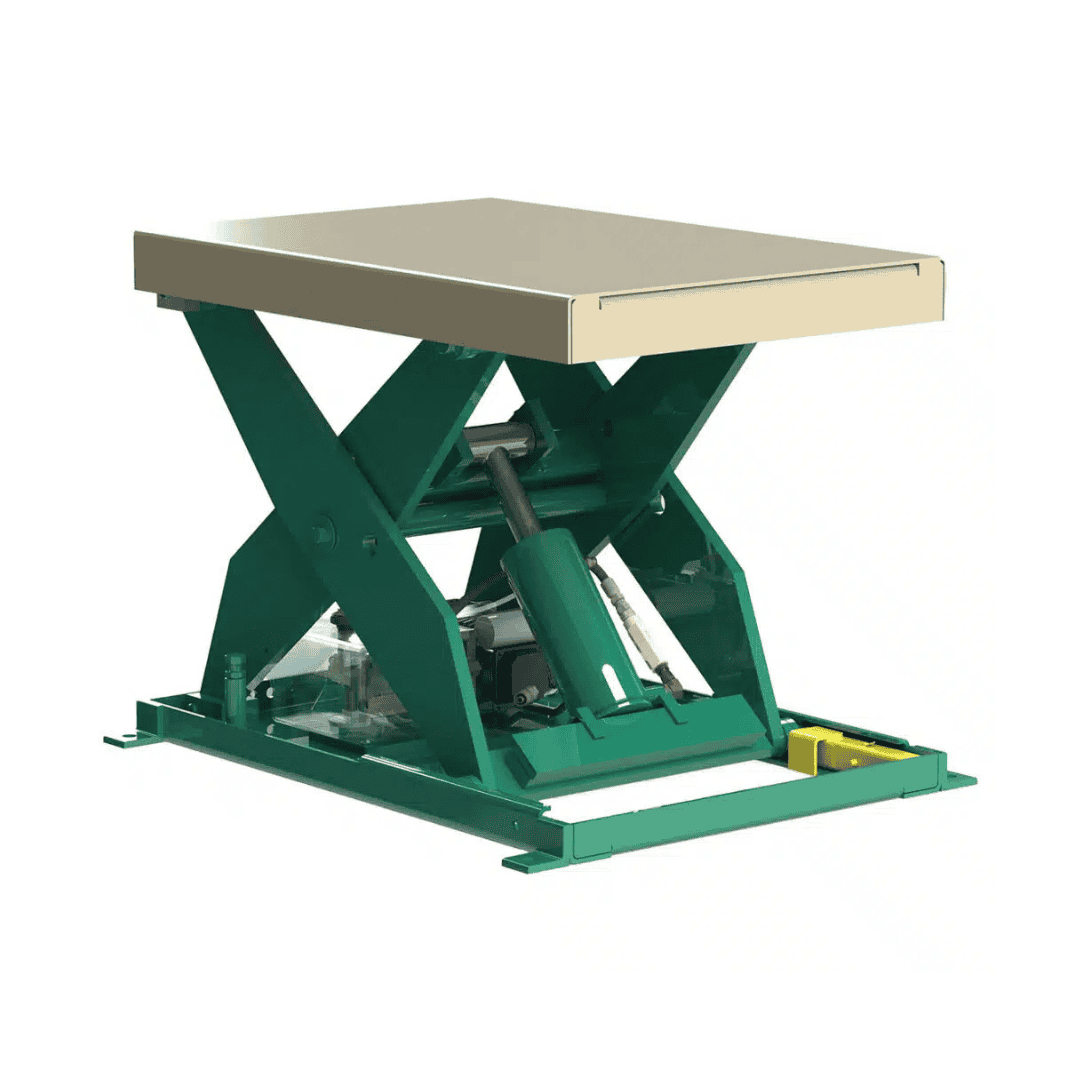

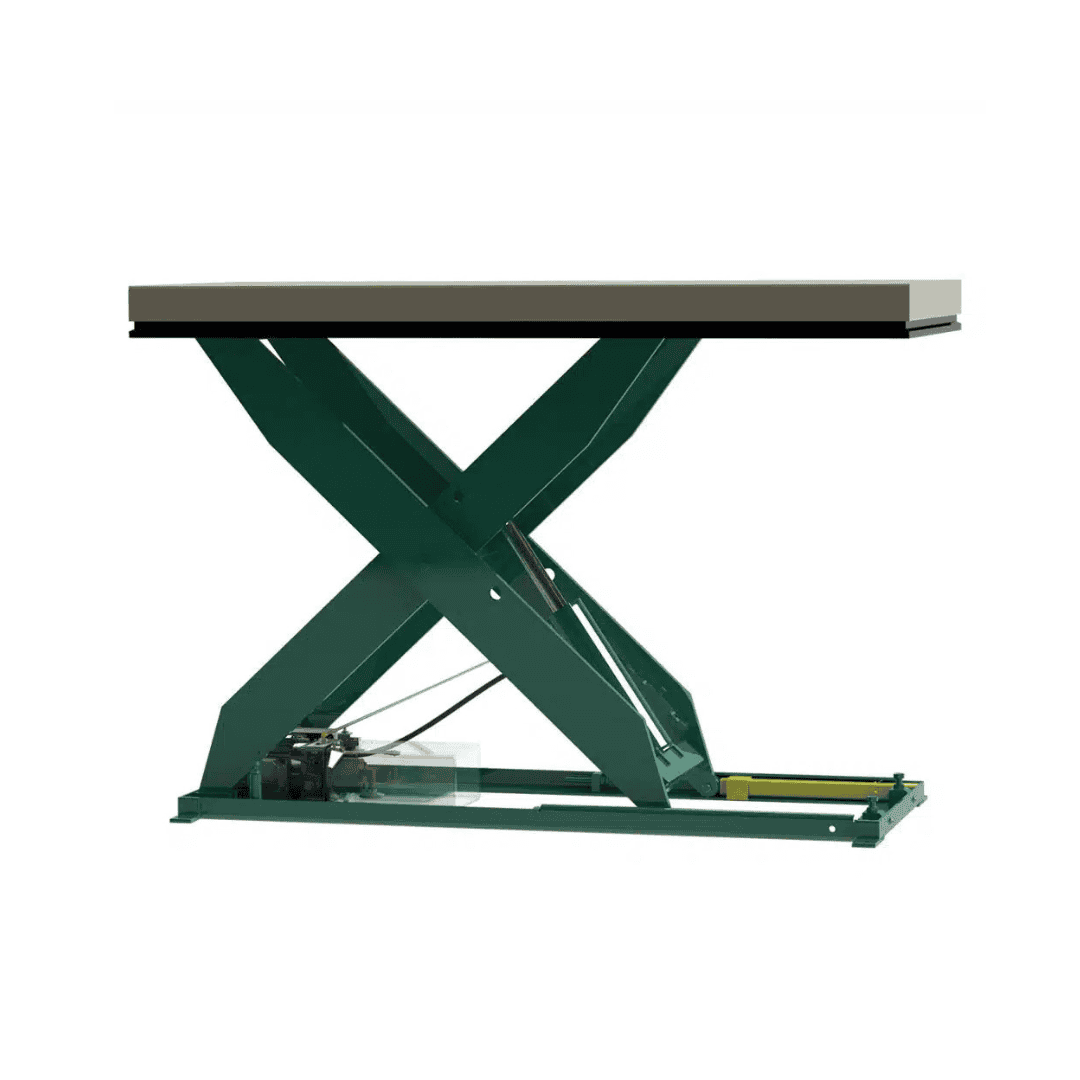

This compact hydraulic scissor lift table delivers 2,000 lbs of lifting power in a space-saving footprint. With a standard platform of 24 in. x 36 in. and a raised height of 31.25 in., this lift table fits into tighter work areas where larger models cannot. Its reliable power unit raises and lowers loads smoothly, making it a strong choice for ground-level material handling tasks.
Designed for repeated daily use, this scissor lift table helps workers position materials at a comfortable height. The heavy duty frame and hydraulic system provide stable, consistent performance in fast-paced industrial settings. Whether feeding machines, loading parts, or supporting assembly work, this table keeps your team productive and your materials where they need to be.
Benefits
This hydraulic lift table reduces the physical strain that comes with manually raising and lowering heavy items. By bringing materials to the right working height, it supports better posture and helps prevent the repetitive lifting injuries common in warehouses, shops, and production areas.

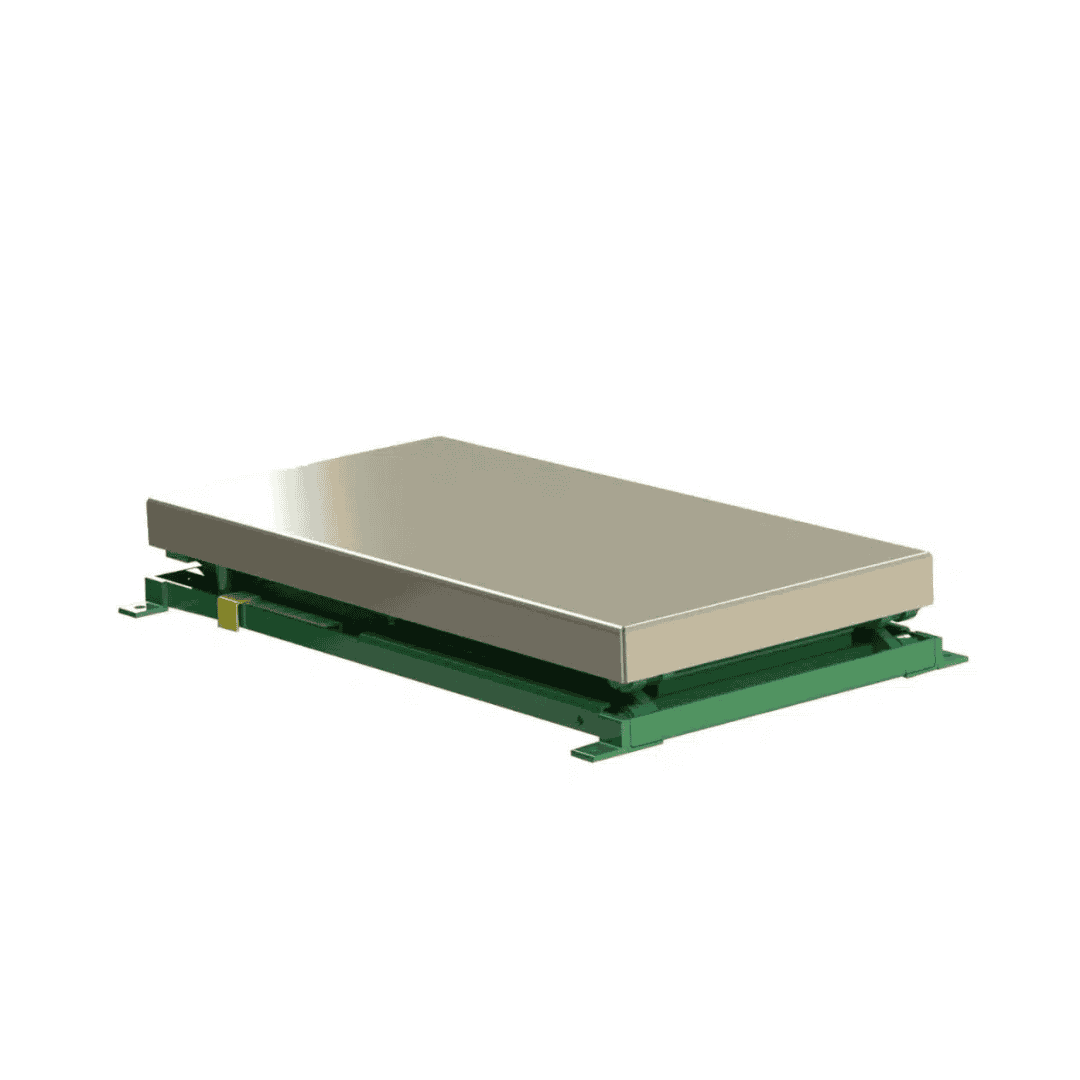

Heavy-duty torque tubes keep the platform rigid and stable, even under full load. Contoured scissor legs provide extra strength at the pivot point while allowing a lowered height of just 7.25 in. The power unit operates quietly and efficiently, and pressure-compensated flow control allows you to adjust the lowering speed for more precise positioning. Built-in maintenance props, lubricated-for-life bushings, and a tell-tale hydraulic return line minimize service time and keep this scissor table running day after day.
| Model Number | Load Capacity (lbs.) | Raised Height (in.) | Lowered Height (in.) | Standard Platform Size (in.) | Link to Page |
|---|---|---|---|---|---|
| LS2-24 | 2000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS4-24 | 4000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS2-36 | 2000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36 | 4000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36WFMTT | 3500 | 43.25 | 7.25 | 36 x 48 | Link |
| LS2-48 | 2000 | 55.25 | 7.25 | 24 x 64 | Link |
Applications
This compact scissor lift table is well suited for work environments where floor space is limited. Common uses include machine feeding in manufacturing cells, work positioning on assembly lines, and order picking in distribution centers. Auto repair shops and maintenance areas also benefit from the table's ability to raise parts and tools to a safe, ergonomic height.
Because of its smaller platform size, this lift table works especially well with lighter pallets, totes, and individual components. Its ground-level lowered height of 7.25 in. allows easy loading from pallet jacks and hand trucks, supporting faster material flow throughout your facility.
Maintenance
This lift table is designed for low maintenance and long-term dependability. Basic care keeps it running smoothly with minimal effort. Workers should regularly check hydraulic hoses, the scissor arms, and the platform surface for any signs of wear or debris. These simple inspections help maintain safe and reliable performance.
Grease points are easy to reach, allowing quick lubrication when needed. The sealed bearings reduce the amount of ongoing service required, which is helpful for busy facilities that cannot afford lengthy downtime. Regular cleaning and following the recommended inspection schedule will extend the life of the lift table and help prevent unexpected repairs.
Selection Assistance
Choosing the right hydraulic lift table starts with understanding your load capacity needs, the height range your workflow requires, and how much floor space you have available. This model's 24 in. x 36 in. platform is ideal for compact work cells and areas with tight clearances, while the 2,000 lb capacity covers a wide range of typical industrial loads.
If your application requires a larger surface, the platform can be configured up to 48 in. x 60 in. Additional options include conveyor tops, turntables, fork pockets, and bellows skirting. Barron Equipment can help you match the right configuration to your specific workflow. Fill out the form below and a product specialist will reach out to assist you.
