Overview

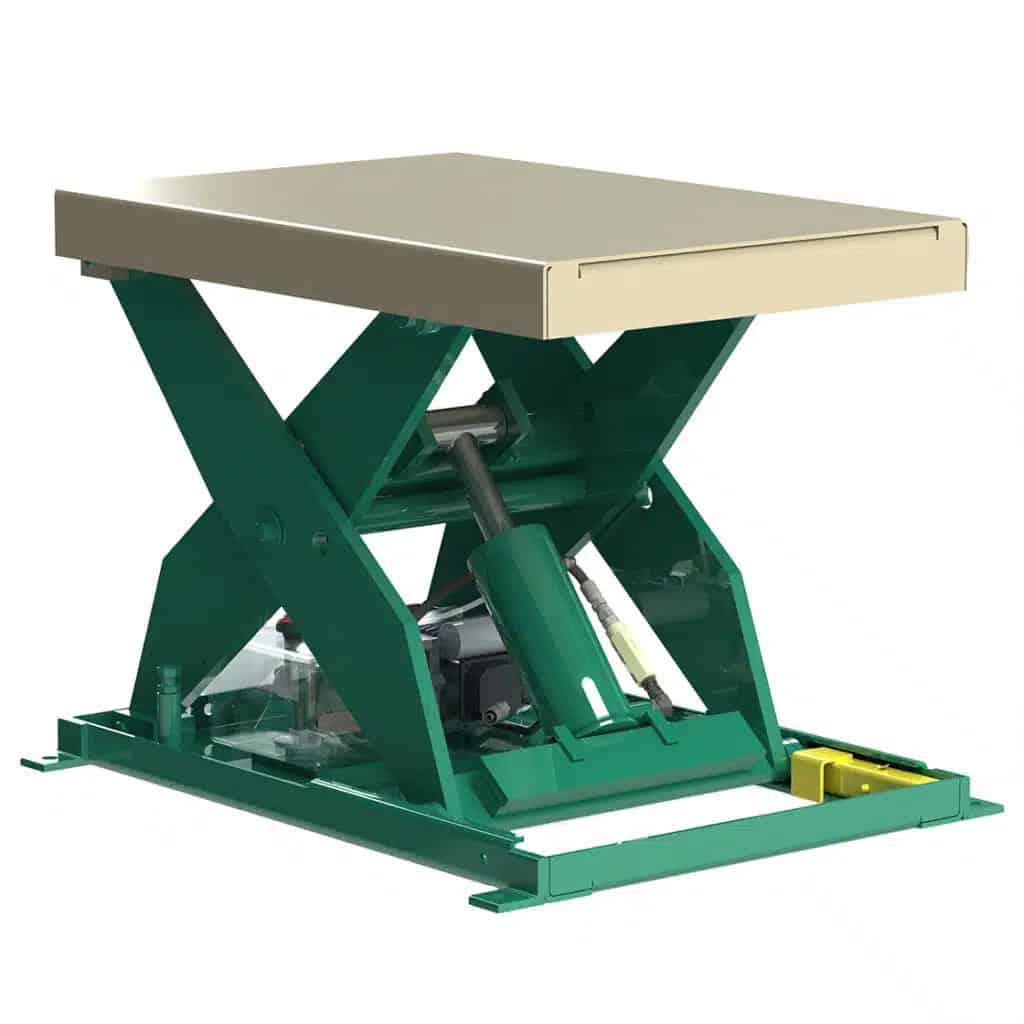

This hydraulic scissor lift table delivers a 4,000 lb load capacity across two platform sizes — 24 in. x 48 in. and 48 in. x 72 in. — giving your team the flexibility to match the right surface area to the materials you handle. The hydraulic power unit provides smooth, controlled lifting with up to 36 in. of vertical travel, raising heavy loads to a comfortable working height. Whether you need a standard footprint or an oversized surface for larger materials, this lift table keeps demanding operations moving safely and efficiently.
At 4,000 lbs, this scissor lift table handles the heavier end of industrial material handling — loaded pallets, machine components, dies, and fixtures that would be unsafe or impractical to move by hand. The heavy duty frame and scissor mechanism are engineered for repeated daily cycling in high-demand work environments.
Benefits
A higher-capacity lift table means fewer limitations on what your team can safely raise and position. The 4,000 lb rating supports loads that exceed what standard 2,000 lb models can handle, reducing the need for overhead cranes or forklifts during routine positioning tasks. That translates to faster changeovers, safer workflows, and less reliance on secondary equipment.
Heavy-duty torque tubes hold the platform steady under load, preventing twisting and deflection even at full capacity. Contoured scissor legs deliver added strength at each pivot point while keeping the collapsed height low for easy ground-level loading. Pressure-compensated flow control lets operators fine-tune the lowering speed for safer, more precise positioning. Built-in maintenance props, lubricated-for-life bushings, and a tell-tale hydraulic return line keep this scissor table reliable and low-maintenance shift after shift.
| Model Number | Load Capacity (lbs.) | Raised Height (in.) | Lowered Height (in.) | Standard Platform Size (in.) | Link to Page |
|---|---|---|---|---|---|
| LS2-24 | 2000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS4-24 | 4000 | 31.25 | 7.25 | 24 x 36 | Link |
| LS2-36 | 2000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36 | 4000 | 43.25 | 7.25 | 24 x 48 | Link |
| LS4-36WFMTT | 3500 | 43.25 | 7.25 | 36 x 48 | Link |
| LS2-48 | 2000 | 55.25 | 7.25 | 24 x 64 | Link |
Applications
This lift table is designed for facilities that regularly handle loads in the 2,000 to 4,000 lb range. Common applications include die loading and changeover, feeding heavy stock into fabrication or stamping equipment, pallet loading in shipping and receiving, and raising machine components during assembly or maintenance. Manufacturing plants, tool and die shops, and heavy industrial repair areas all benefit from the added load capacity.
The smaller 24 in. x 48 in. platform accommodates standard pallet sizes and most industrial components. The larger 48 in. x 72 in. option supports oversized loads, sheet goods, and wider assemblies that would not fit on a standard platform. Both configurations allow ground-level loading with pallet jacks or hand trucks, and the raised height supports ergonomic work positioning for standing tasks.
Maintenance
This scissor lift table is built with low‑maintenance components that help keep your facility running efficiently. Sealed bearings reduce the need for frequent lubrication, and easily accessible grease points make routine service quick and simple. Regular inspections—such as checking hydraulic hoses, scissor arms, and the platform surface—help maintain long‑term reliability.
Because the table is built for heavy duty daily use, following a consistent maintenance schedule extends its lifespan and reduces downtime. The sturdy frame, combined with the dependable hydraulic system, ensures the lift stays in strong working condition, even in fast‑paced industrial settings.
Selection Assistance
Choosing between the two platform sizes comes down to the dimensions and type of materials you handle most often. The 24 in. x 48 in. platform works well for standard pallets and compact loads. The 48 in. x 72 in. option is a better fit for wider or longer materials that require more surface area for stability during lifting.
Before ordering, confirm your facility's electrical supply — higher-capacity models may require three-phase power. Additional configuration options include conveyor tops, turntables, fork pockets, bellows skirting, and pit mounting. For lighter loads on the same platform sizes, the LS2-36 offers a 2,000 lb alternative. Barron Equipment can help you select the right setup. Fill out the form below and a product specialist will reach out to assist you.
